LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-17

8-2-4-3 Removal procedure (cont’d)

15.)Unscrew 3 screws (2159634, BH M4x10 WHT) after removing the rubber caps to remove neck front

cover, neck rear cover.

16.)Unscrew 3 screws(5327646, HSH M6X16 WHT) to separate the flexible arm neck pipe.

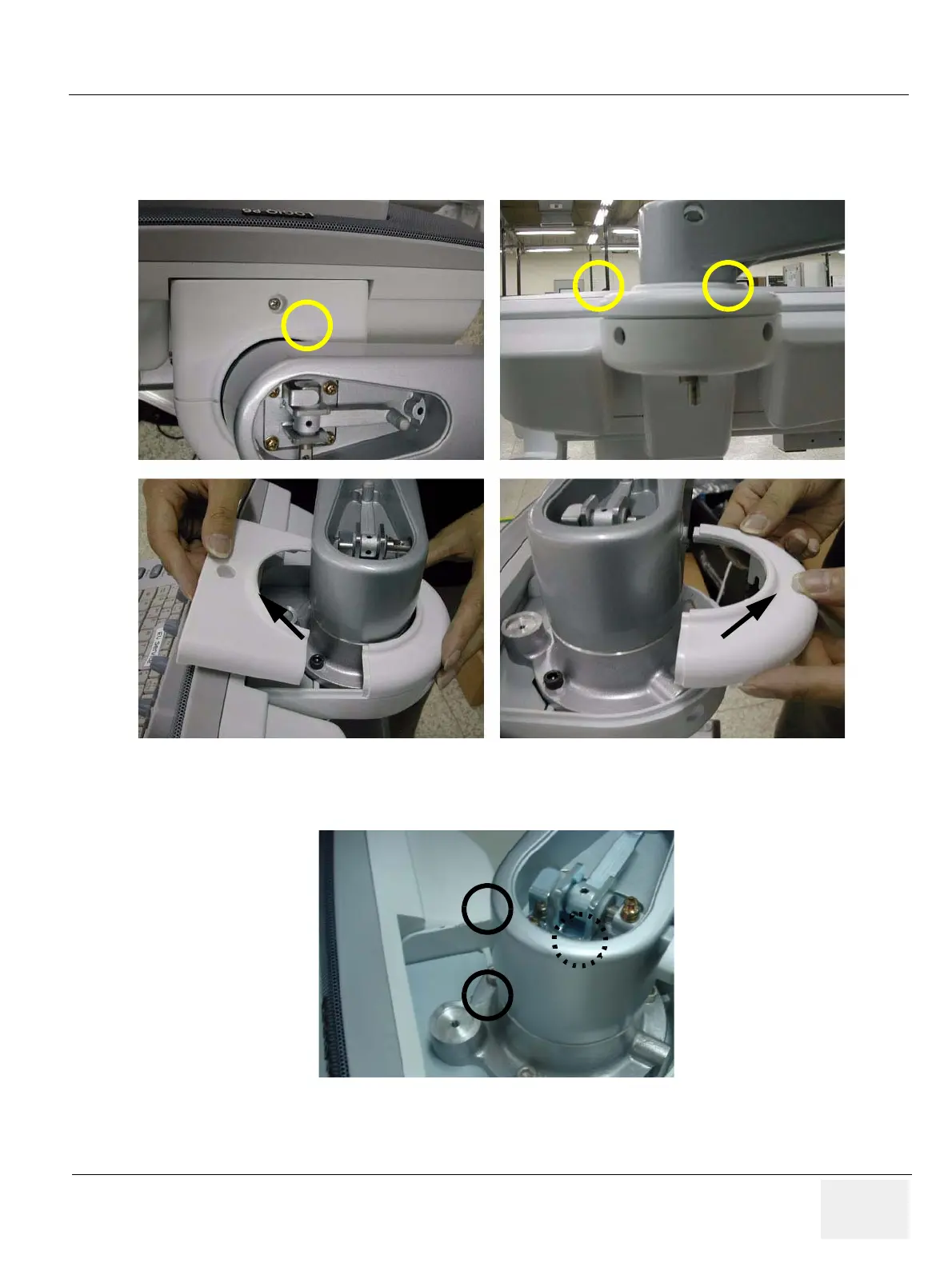

Figure 8-31 Unscrewing 3 screws and removing the neck front cover & neck rear cover

Figure 8-32 Separating the neck pipe
