LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-18 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4-3 Removal procedure (cont’d)

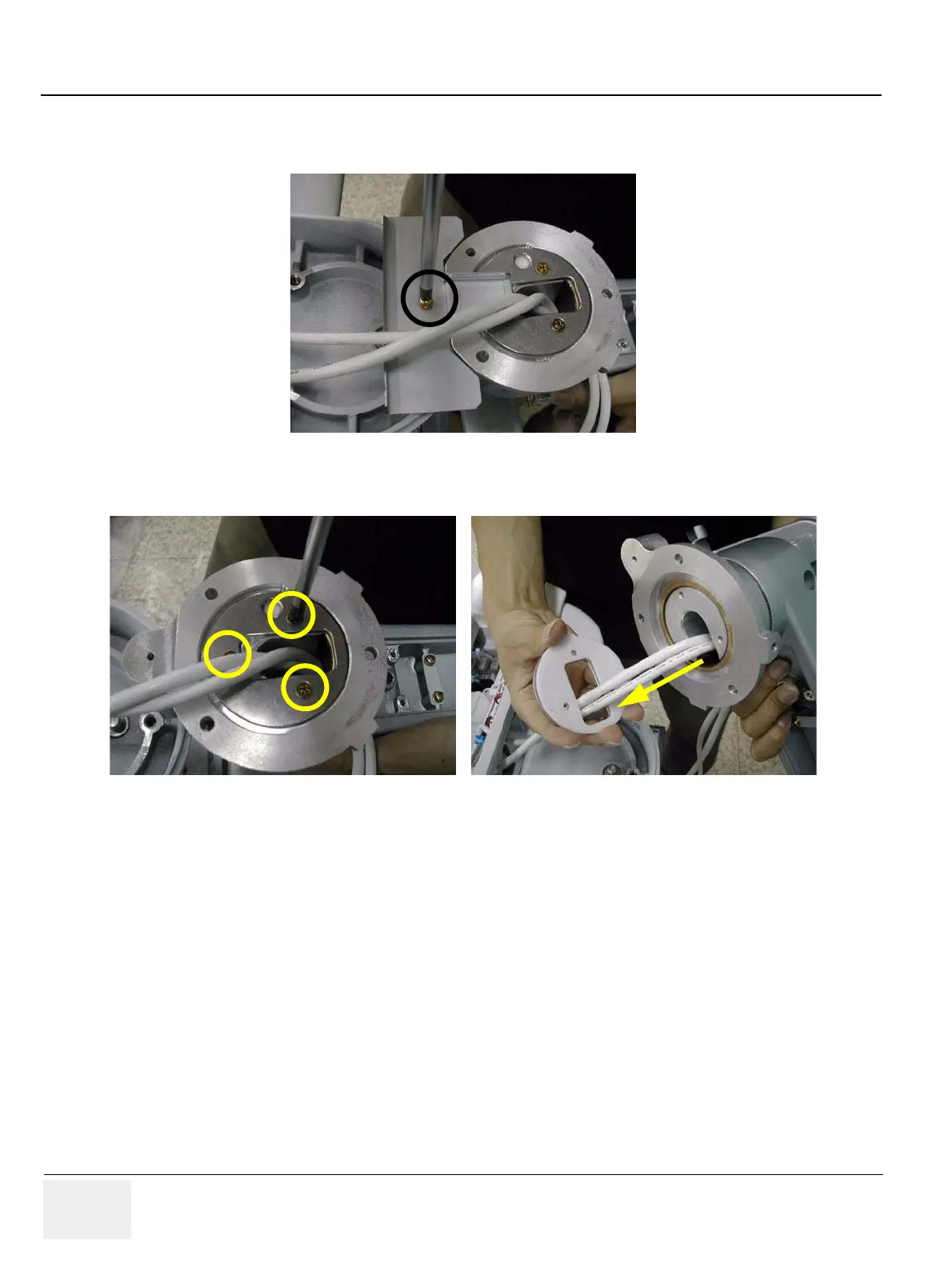

17.)Unscrew 1 screw (2159625, PH M4x8 W/SP) to remove the OP bracket.

18.) Unscrew 3 screws (2373562, FH M4x10 YEL) to separate the Flexible arm stopper (A+B).

Figure 8-33 Removing OP bracket

Figure 8-34 Separating the flexible arm stopper
