LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-19

8-2-4-3 Removal procedure (cont’d)

19.)Pull out power cable & DVI cable and remove the oilless bush after separating the neck pipe.

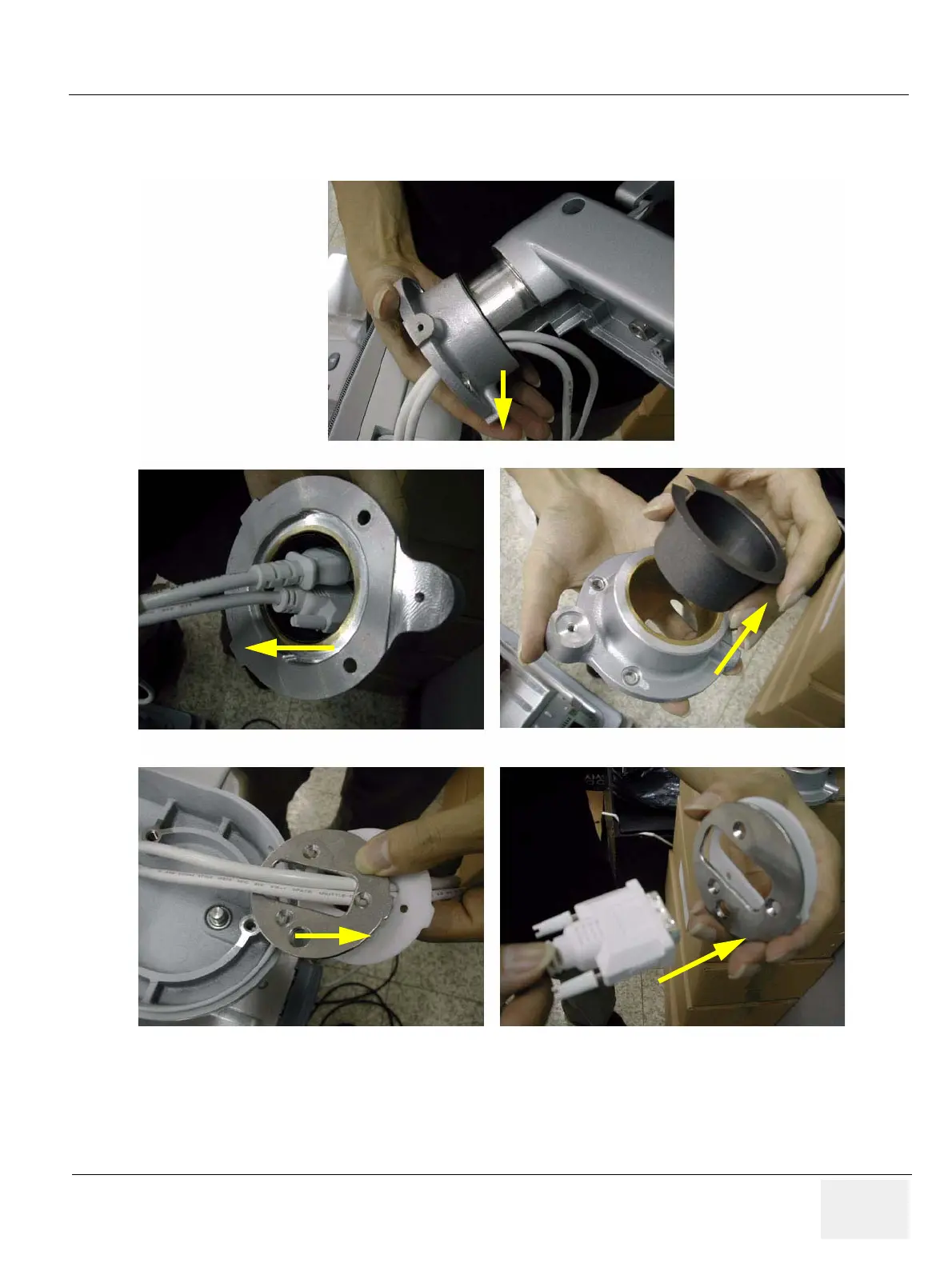

Figure 8-35 Pulling out power cable & DVI cable and removing the stopper
