GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-30 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4-4 Assembly procedure (cont’d)

22.)Screw 2 screws (2159632, BH M4X6 WHT) to assemble the Cam Cover L & R.

23.)Screw 1 screw (2329677, TAP M4X16) to assemble the Fold Cover.

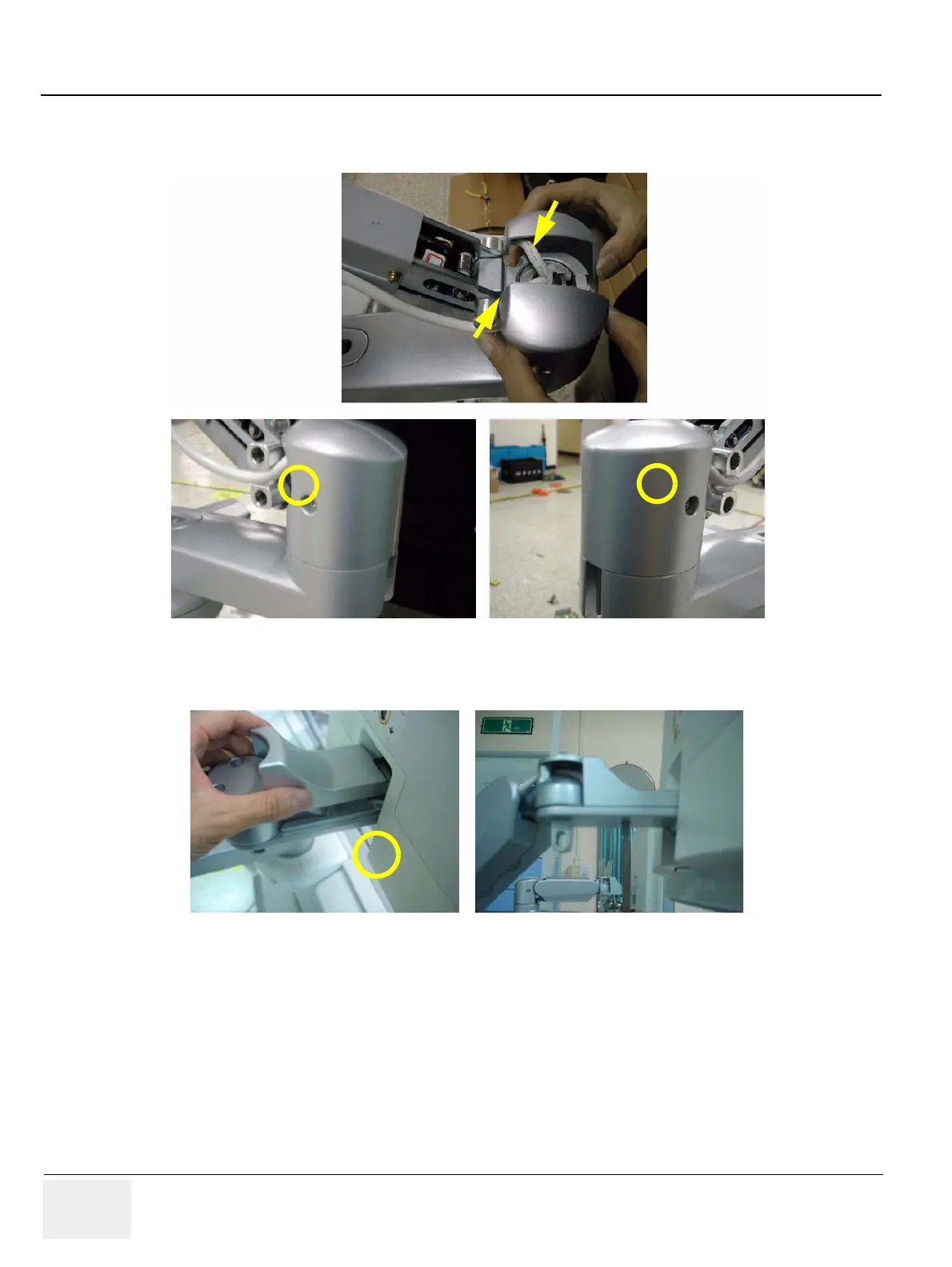

Figure 8-57 Assembling the Cam Cover L & R

Figure 8-58 Assembling the Fold Cover
