GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-32 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4-4 Assembly procedure (cont’d)

26.)Attach LCD Arm Caution Label, LCD Arm Rotation Label, LCD Lock Caution Label.

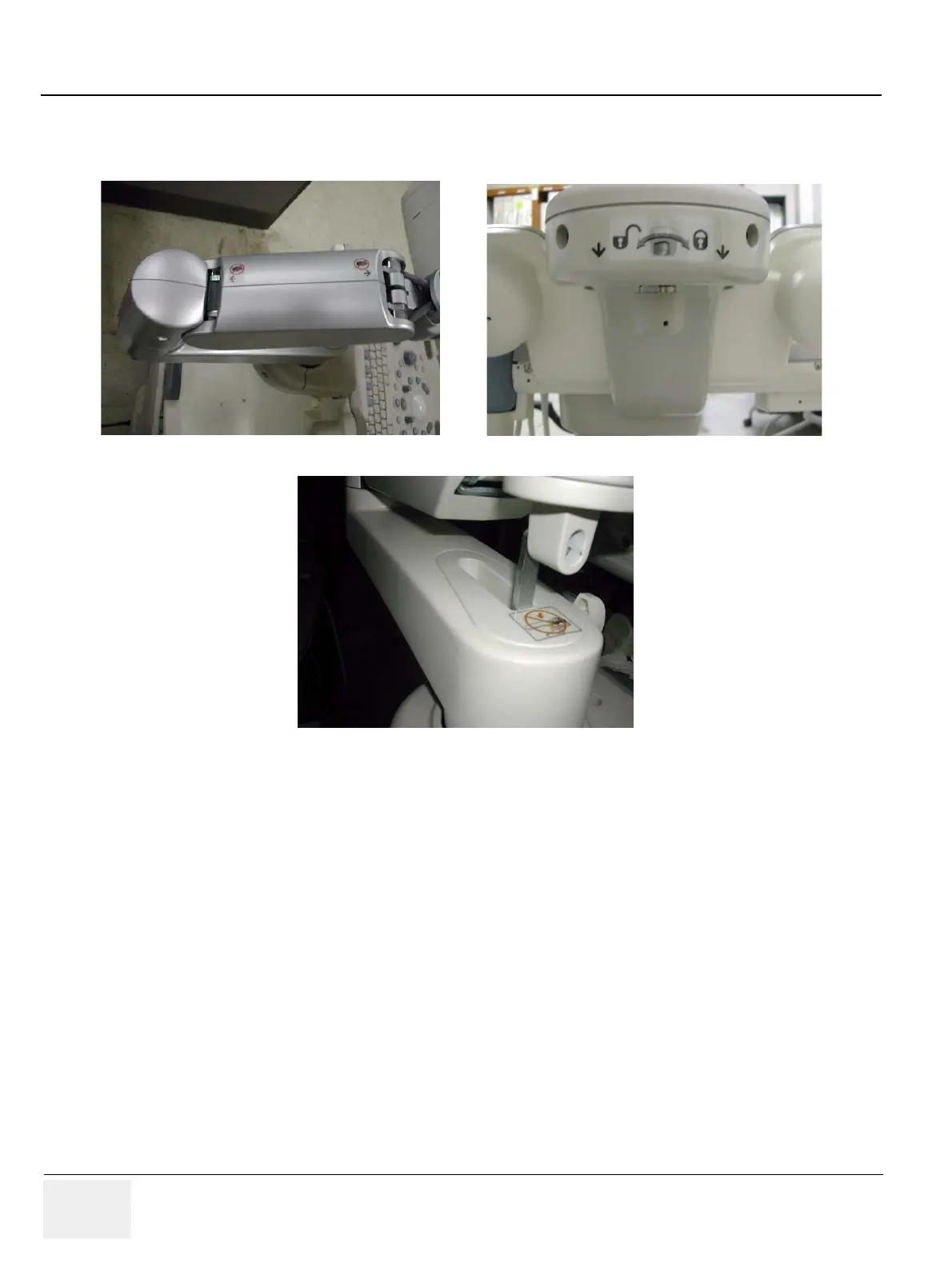

Figure 8-61 Flexible Arm

LCD Arm Caution Label

LCD Arm Rotation Label

LCD Lock Caution Label
