GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-34 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-5-3 Removal procedure (cont’d)
3.) ARM BOTTOM COVER
Unscrew 4 screws (2159634, BH M4x10 WHT) to remove the Arm bottom cover.
4.) ARM CABLE COVER
Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Arm cable cover.

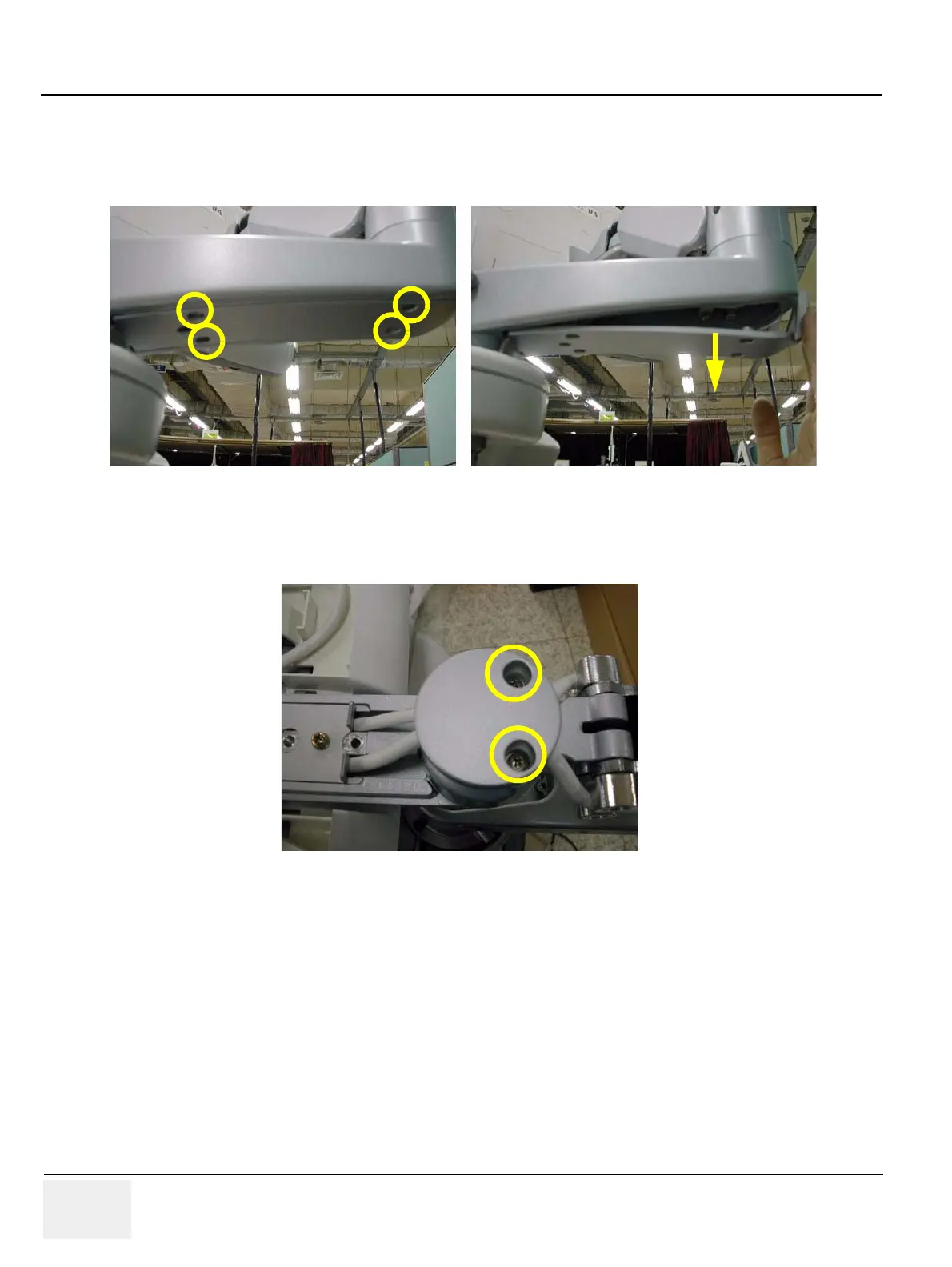

Figure 8-64 Removing the Arm bottom cover
Figure 8-65 Removing the Arm cable cover
