8-2-5-3 Removal procedure (cont’d)
5.) ARM LOCK COVER
Unscrew 1 screw (2329677, TAP M4x16) to remove the Arm lock cover.
6.) ARM LOCK KNOB
1.) Unscrew 1 screw (2329677, TAP M4x16) to remove the Arm lock cover.
2.) Unscrew 1 screw (2159625, PH M4X8 W/SP) to remove the Arm lock Knob.

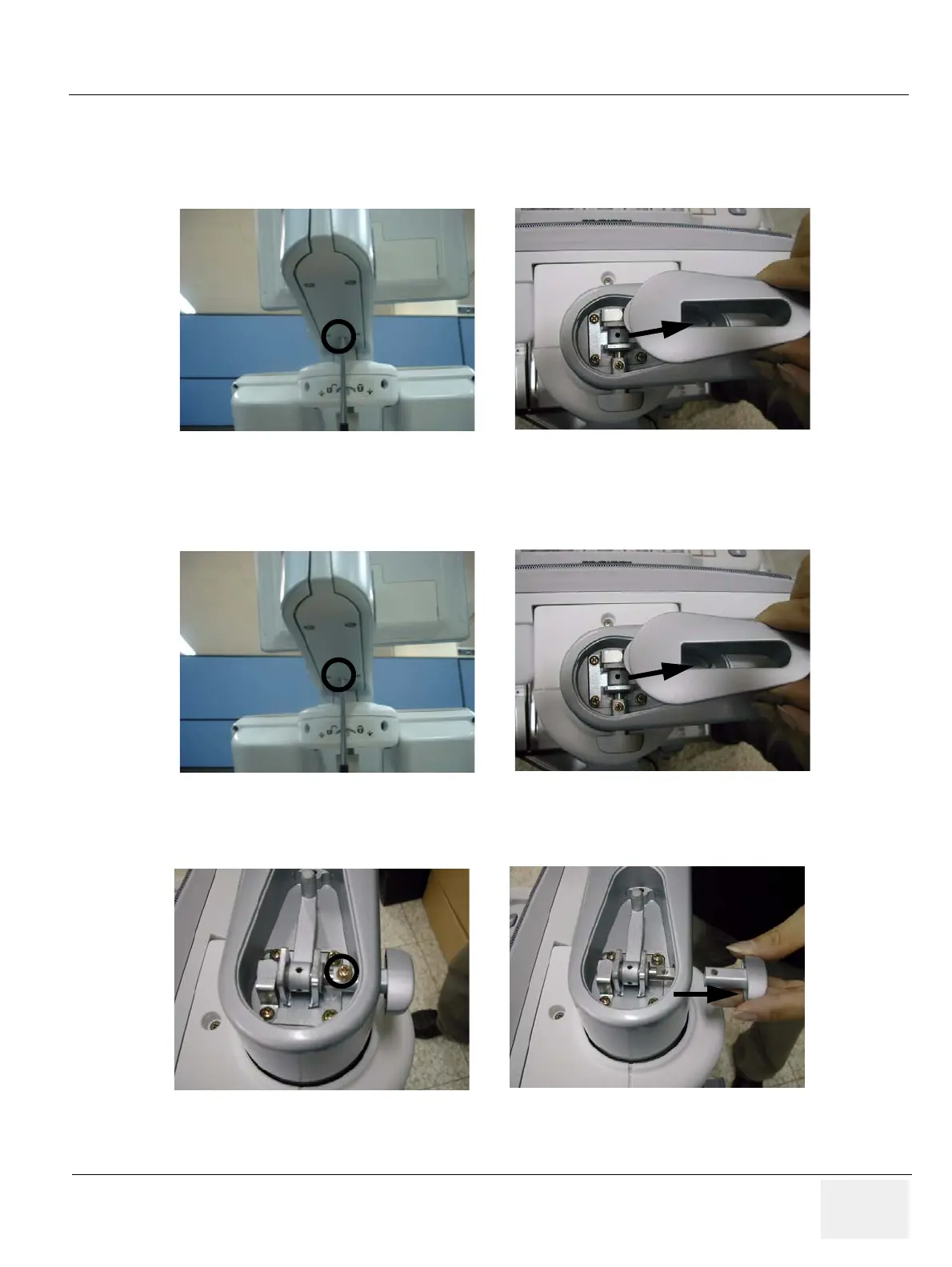

Figure 8-66 Removing the Arm lock cover
Figure 8-67 Removing the Arm lock cover
Figure 8-68 Removing the Arm lock Knob
