GE LOGIQ P6 Series

To Next Page

To Previous Page

GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-98 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-45-3 Removal procedure (cont’d)

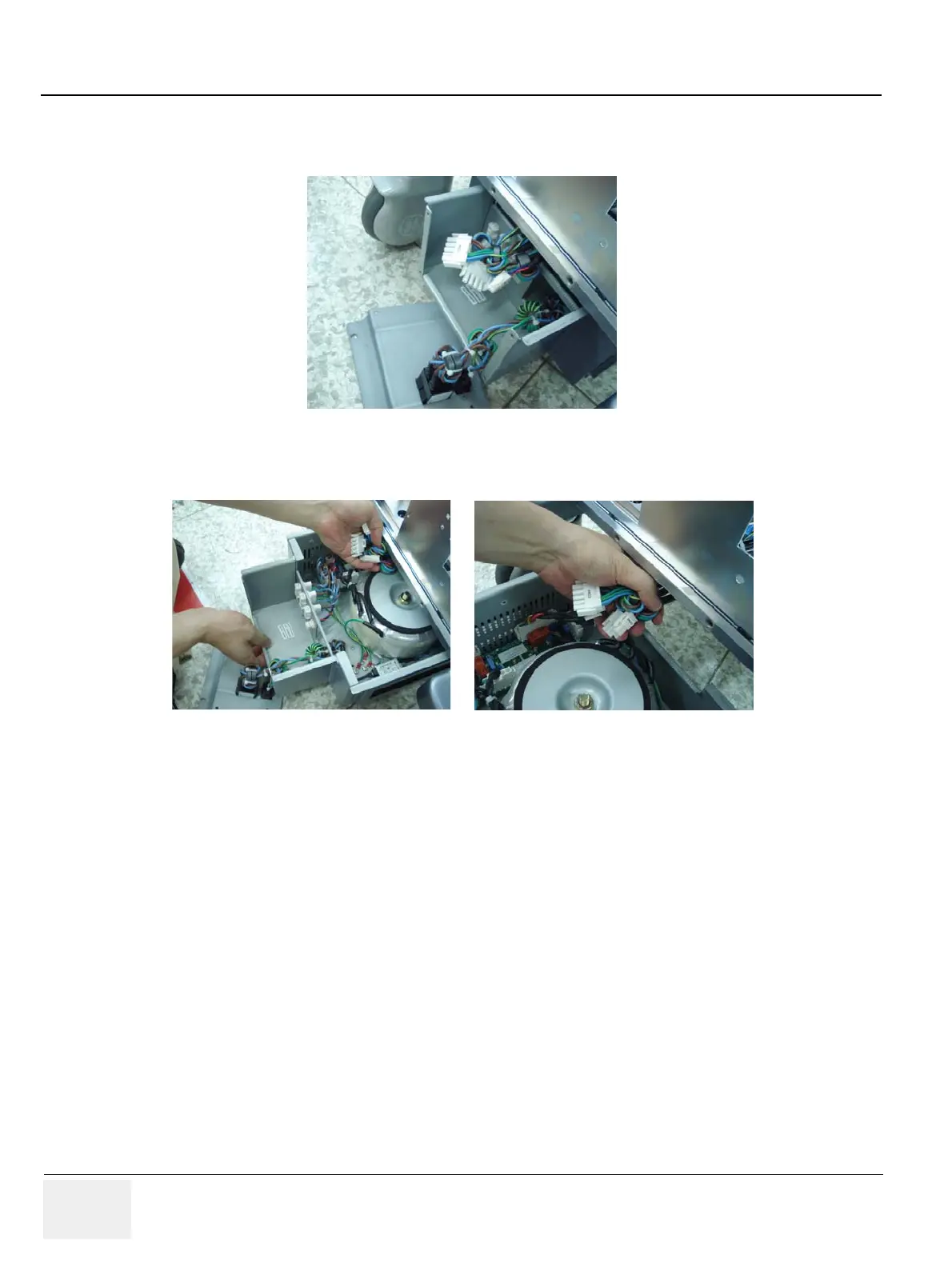

5.) Disconnect the four connectors form TRANSBOX in Figure 8-143.

6.) Pull out TRANSBOX forwards.

Figure 8-143 Connectors

Figure 8-144 Pull out the Transbox assy
