GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-113

8-4-1 Installing Base Image Software (cont’d)

6.) Insert the BT11 Base Image Software Disk into the CD/DVD ROM drive.

7.) After restarting the system, the following screen will be displayed.

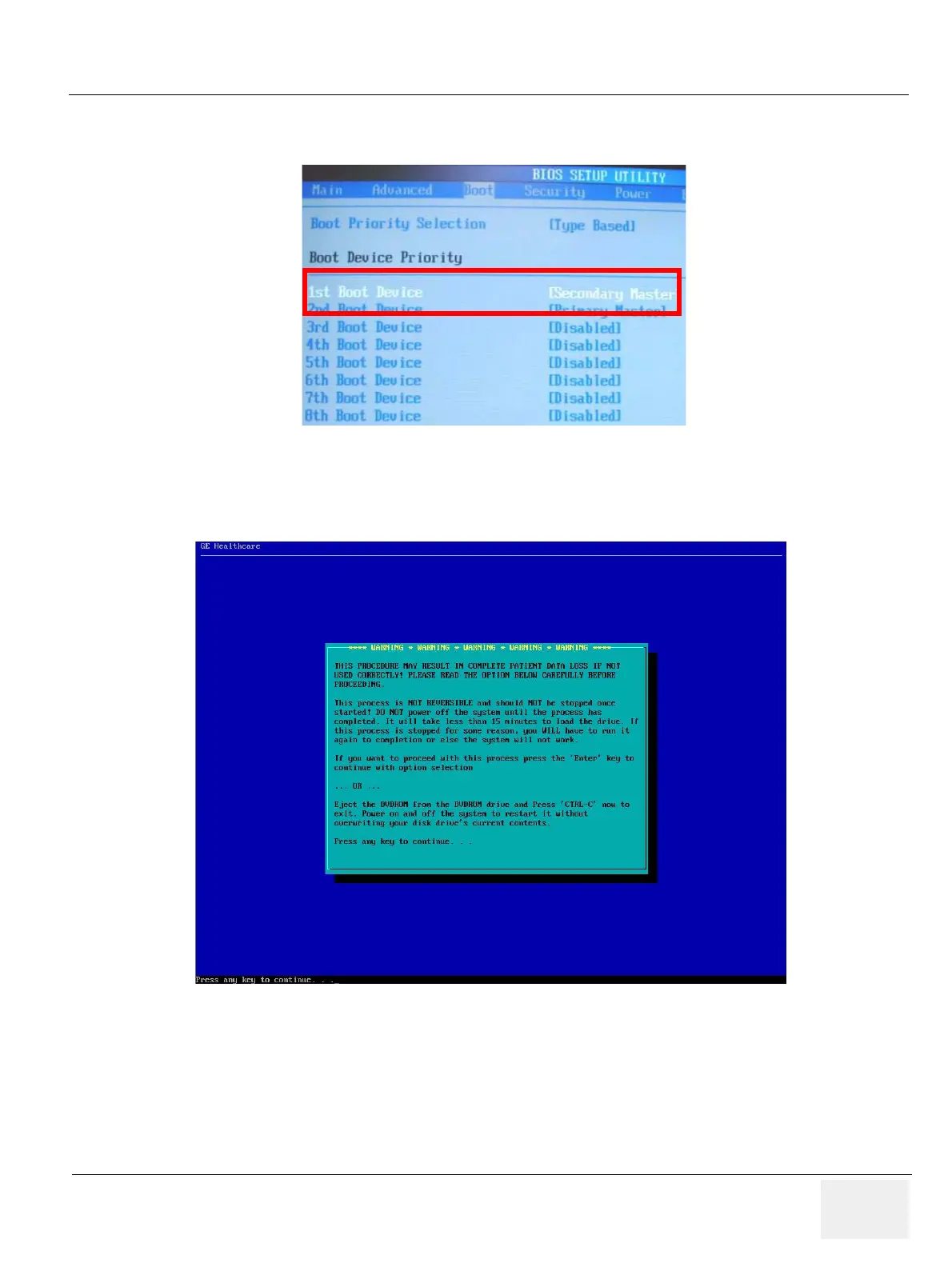

Figure 8-167 Boot Device Priority

Figure 8-168 Installation Warning
