Page 8-172 Section 8-7 - Mechanical Option Installation instruction

8-7-11 Color Printer Fixture Top Installation - UP-D25MD Printer (cont’d)

4.) Install Top Cable BRKT_UPD25MD by screwing 2 screws(2159633, BH M4X8).

5.) Install Color Printer to the DVD top Bracket by screwing 4 screws (2306562, FH M3X6).

6.) Screw 4 screws(2159633, BH M4X8) on both sides to fix the color printer with TOP Bracket to the

color printer bottom bracket.

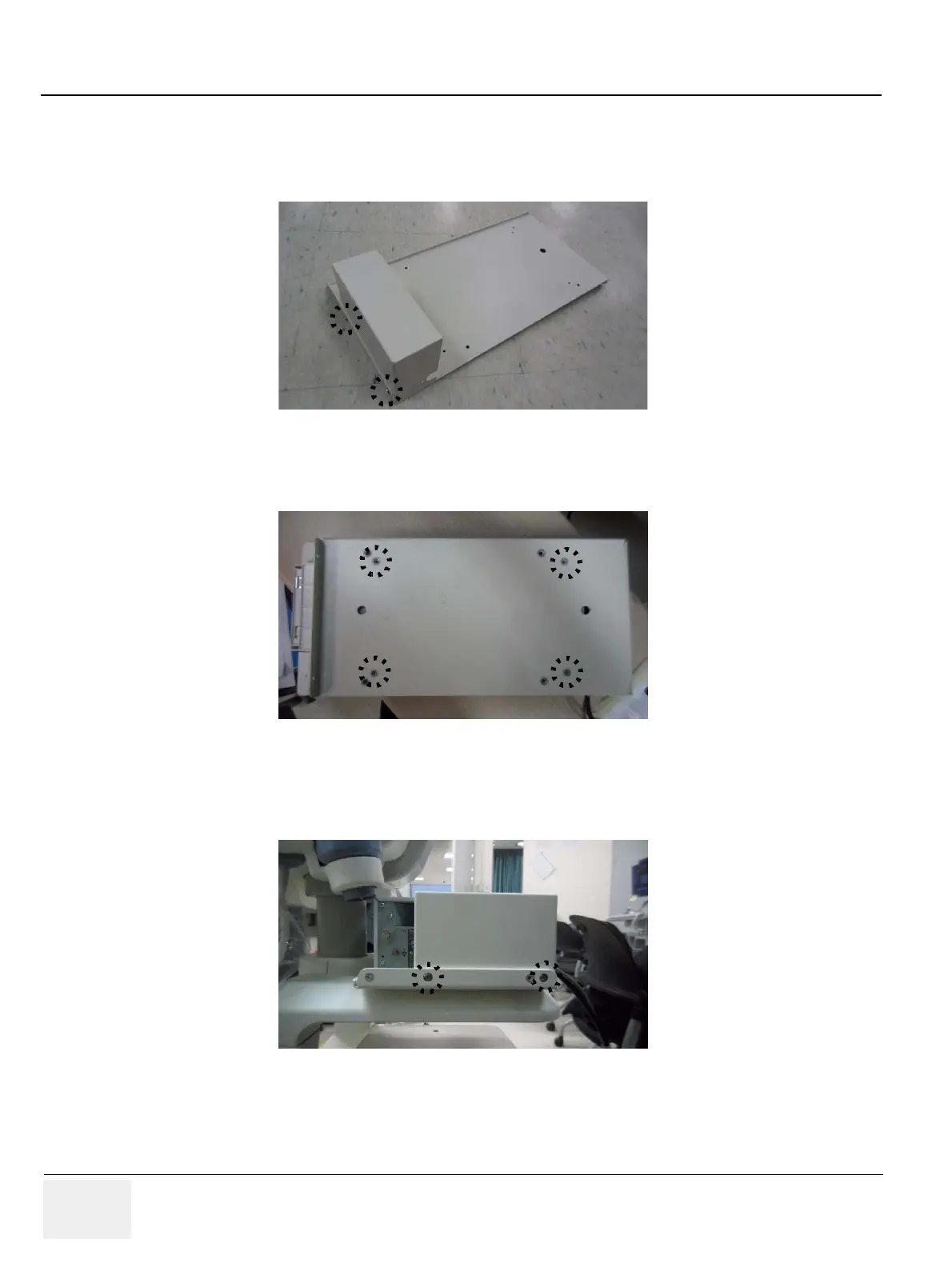

Figure 8-271 Color Printer Fixture Top Installation

igure 8-272 Color Printer Fixture Top Installation

Figure 8-273 Color Printer Fixture Top Installation
