LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-183

8-7-14 Printer VCR DVD Fixture Top Installation (MD-800) (cont’d)

4.) Install DVD recorder to the base bracket by screwing 2 screws(2159633, BH M4x8 WHT) on each

side.

5.) Connect the USB cable and power cable from the DVD to the system.

6.) Connect the cables to the system on the rear panel.

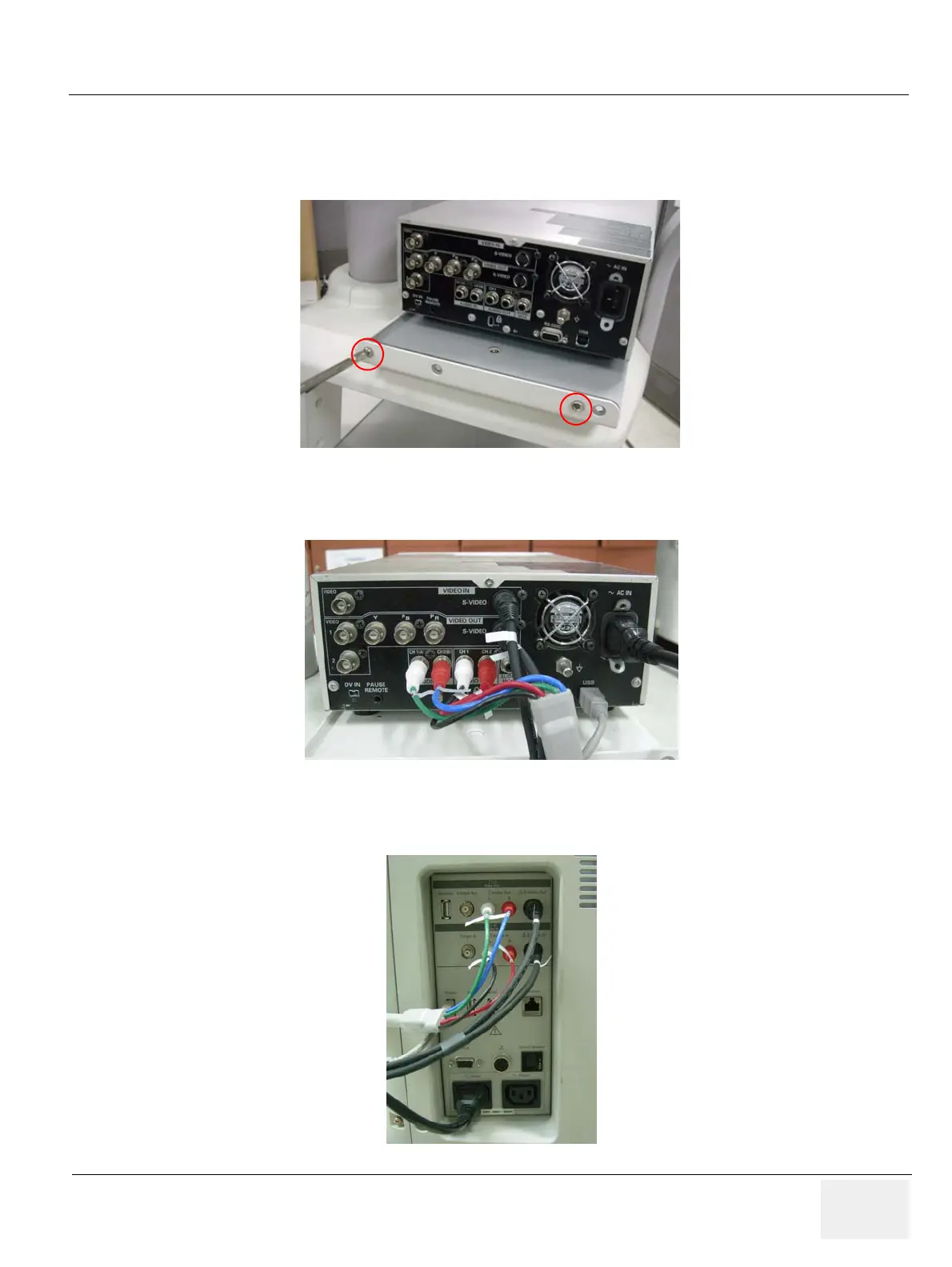

Figure 8-298 Printer VCR DVD Fixt

ure Top installation (LQ MD800)

Figure 8-299 Printer VCR DVD Fixture Top installation (LQ MD800)

Figure 8-300 Printer VCR DVD Fixture Top installation (LQ MD800)
