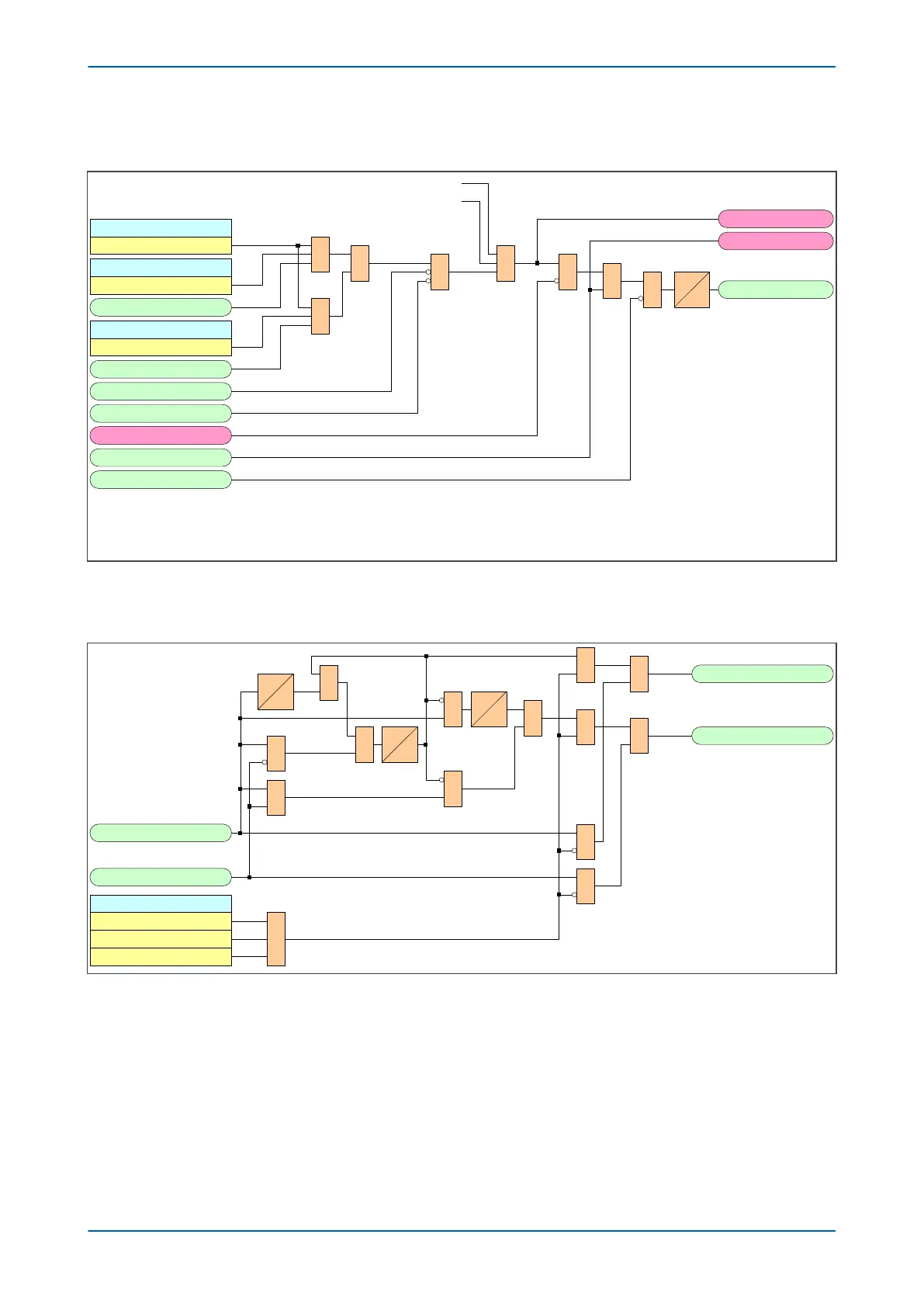

Alarm Status 1
Bit No.
Bit Mask
2nd r
egister, 1st register
Alarm Description
Bit 0 0x0000, 0x0001 Thermal Lockout
Bit 1 0x0000, 0x0002 Unused
Bit 2 0x0000, 0x0004 SG-opto Invalid ON/OFF
Bit 3 0x0000, 0x0008 Prot'n Disabled ON/OFF
Bit 4 0x0000, 0x0010 F out of Range ON/OFF
Bit 5 0x0000, 0x0020 VT Fail Alarm ON/OFF
Bit 6 0x0000, 0x0040 CT Fail Alarm ON/OFF
Bit 7 0x0000, 0x0080 CB Fail Alarm ON/OFF
Bit 8 0x0000, 0x0100 I^ Maint Alarm ON/OFF
Bit 9 0x0000, 0x0200 I^ Lockout Alarm ON/OFF
Bit 10 0x0000, 0x0400 CB Ops Maint ON/OFF
Bit 11 0x0000, 0x0800 CB Ops Lockout ON/OFF
Bit 12 0x0000, 0x1000 CB Op Time Maint ON/OFF
Bit 13 0x0000, 0x2000 CB Op Time Lock ON/OFF
Bit 14 0x0000, 0x4000 Fault Freq Lock ON/OFF
Bit15 0x0000, 0x8000 CB Status Alarm ON/OFF
Bit 16 0x0001, 0x0000 Man CB Trip Fail ON/OFF
Bit17 0x0002, 0x0000 Man CB Cls Fail ON/OFF
Bit 18 0x0004, 0x0000 Man CB Unhealthy ON/OFF
Bit 19 0x0008, 0x0000 Unused
Bit 20 0x0010, 0x0000 Unused
Bit 21 0x0020, 0x0000 Unused
Bit 22 0x0040, 0x0000 Unused
Bit 23 0x0080, 0x0000 Unused
Bit 24 0x0100, 0x0000 UV Block ON/OFF
Bit 25 0x0200, 0x0000 User Alarm 1 ON/OFF
Bit 26 0x0400, 0x0000 User Alarm 2 ON/OFF
Bit 27 0x0800, 0x0000 User Alarm 3 ON/OFF
Bit 28 0x1000, 0x0000 User Alarm 4 ON/OFF
Bit 29 0x2000, 0x0000 User Alarm 5 ON/OFF
Bit 30 0x4000, 0x0000 User Alarm 6 ON/OFF
Bit 31 0x8000, 0x0000 User Alarm 7 ON/OFF
Alarm Status 2
Bit No.
Bit Mask
2nd r
egister, 1st register
Alarm Description
Bit 1 0x0000, 0x0001 Time Betwe Start (motor protection models only)
Bit 2 0x0000, 0x0002 Hot Start Nb. (motor protection models only)
Bit 3 0x0000, 0x0004 Cold Start Nb. (motor protection models only)
Chapter 13 - Monitoring and Control P24xM
246 P24xM-TM-EN-2.1
