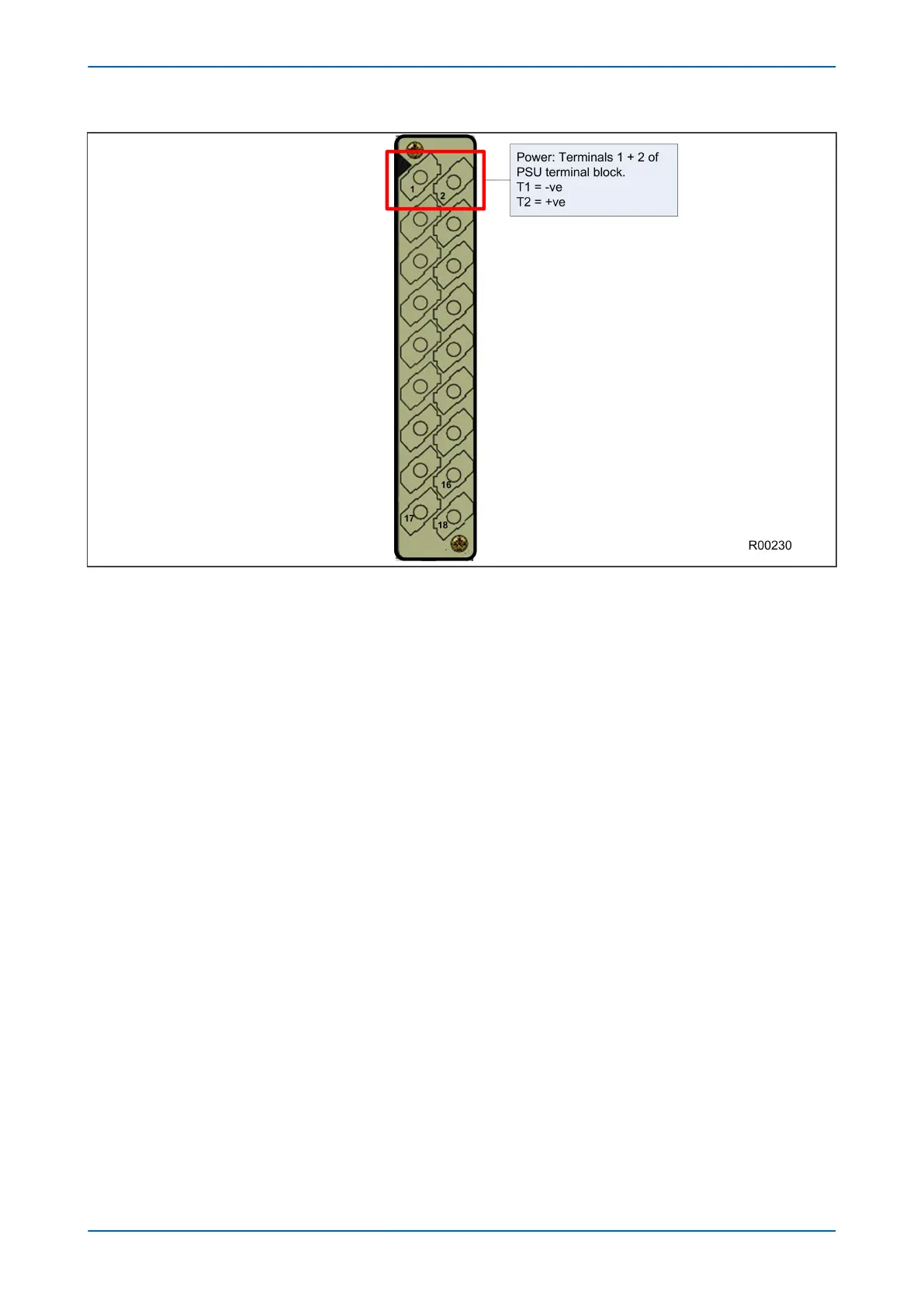

Even though the device itself should be in full working order when you first start it, an alarm could still be present,
for example, if ther
e is no network connection for a device fitted with a network card. If this is the case, you can
read the alarm by pressing the 'Read' key.
ALARMS
NIC Link Fail
If the device is fitted with an Ethernet card, you will first need to connect the device to an active Ethernet network
to clear the alarm and get the default display.
If ther
e are other alarms present, these must also be cleared before you can get into the default display menu
options.
3.3 DEFAULT DISPLAY
The HMI contains a range of possible options that you can choose to be the default display. The options available
ar
e:
NERC Compliant banner
If the device is a cyber-security model, it will provide a NERC-compliant default display. If the device does not
contain the cyber-security option, this display option is not available.
ACCESS ONLY FOR
AUTHORISED USERS
HOTKEY
Date and time
For example:
11:09:15
23 Nov 2011
HOTKEY
Description (user-defined)
For example:
Description
MiCOM P14NB
HOTKEY
Plant reference (user-defined)
For example:
P24xM Chapter 5 - Configuration
P24xM-TM-EN-2.1 59
