GE P24DM - Switch Status Logic; Figure 128: Switch Status Logic

These settings allow you to control the width of the open and close pulses.
SWI1 S
ta Alrm T
This setting allows you to define the duration of wait timer before the relay raises a status alarm.
SWI1 Trp Alrm T and SWI1 Cls Alrm T
These settings allow you to control the delay of the open and close alarms when the final switch status is not in
line with expected status.
SWI1 Operations
This is a data cell, which displays the number of switch operations that have taken place. It is an accumulator,
which you can reset using the Reset SWI1 Data setting
Reset SWI1 Data
This setting resets the switch monitoring data.
Note:
Settings for switch 1 are shown, but settings for all other switch elements are the same.
10.1 SWITCH STATUS LOGIC
V01286
NoneNone
52A52A
52B52B
52A + 52B52A + 52B
SWI1 Aux (52 -A)SWI1 Aux (52-A)
SWI1 Aux (52 -B)SWI1 Aux (52-B)
&
SWI1 Status InptSWI1 Status Inpt &
&
SWI1 Status ClsSWI1 Status Cls
1
SWI1 Input AlmSWI1 Input Alm
&
&
&
&
1
& SWI1 Status OpnSWI1 Status Opn
&
&
1
t
0
SWI1 Sta Alrm TSWI1 Sta Alrm T

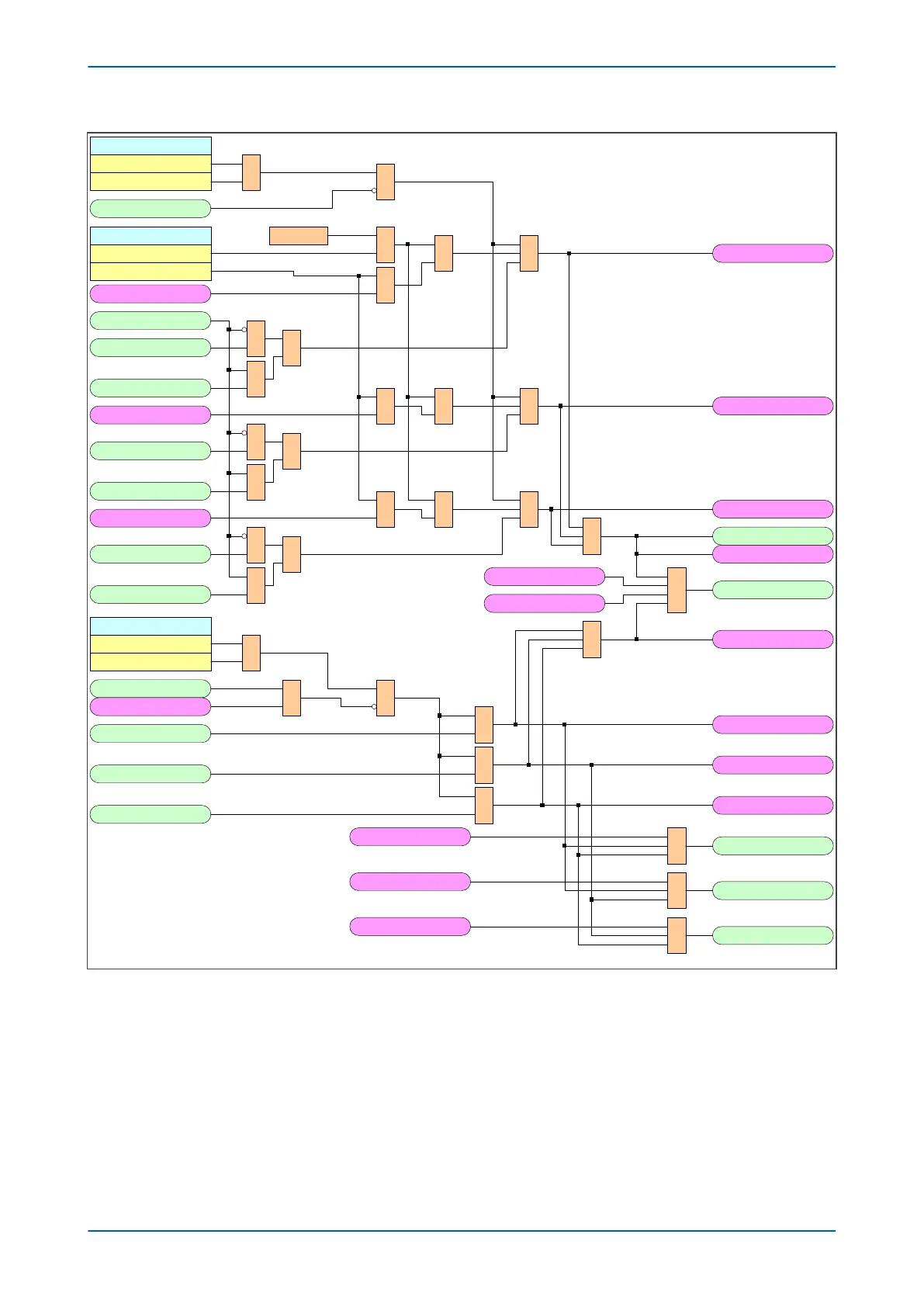

Figure 128: Switch Status logic
