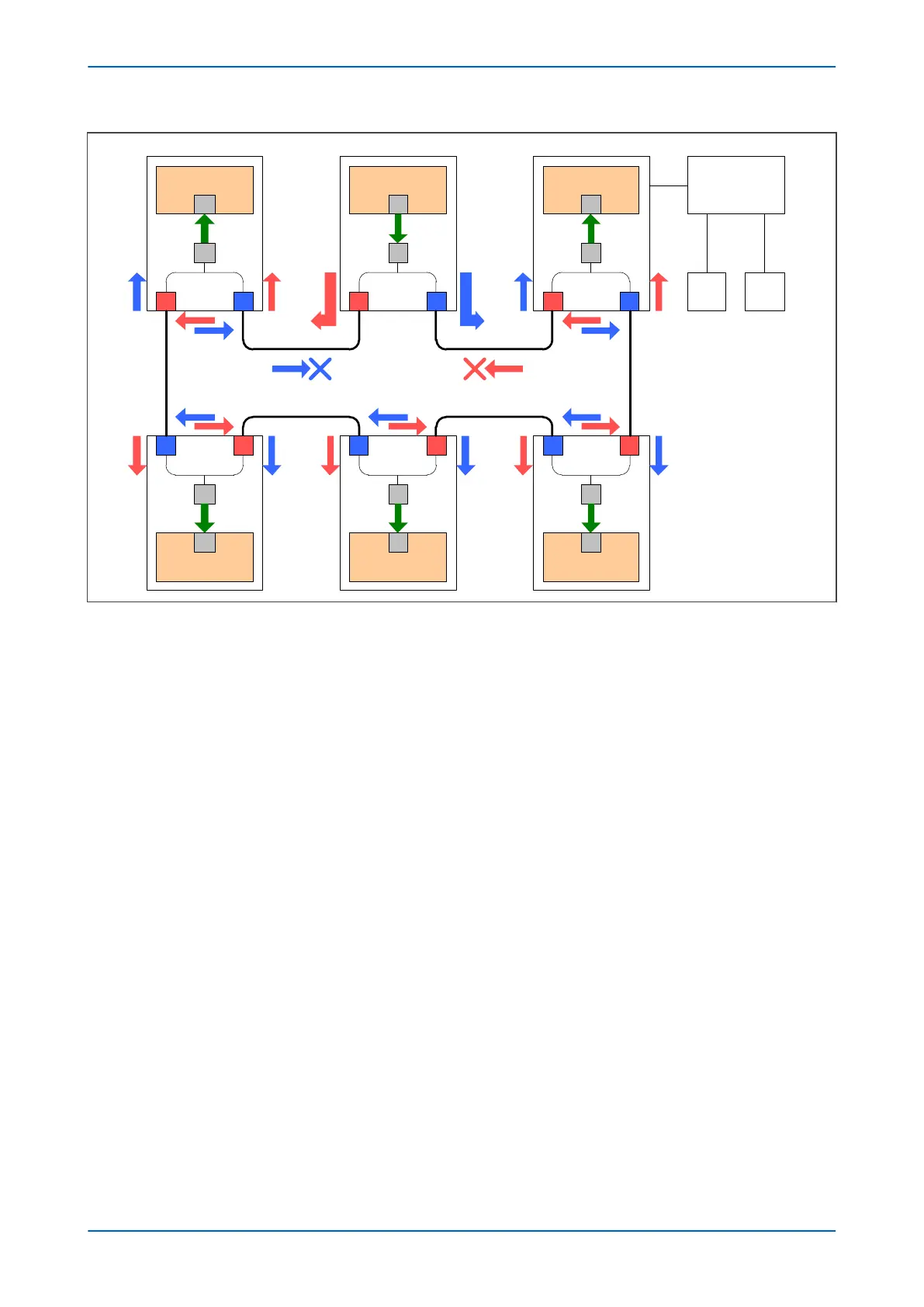

GE P24DM - HSR Unicast Topology; Figure 148: HSR Multicast Topology

DANH
Source
DANH Redbox
DANH DANH DANH
A frame B frame
C frame
Switch
Singly Attached
Nodes
D frameD frame
D frameD frameD frame
V01030
Figure 148: HSR multicast topology
Only about half of the netw
ork bandwidth is available in HSR for multicast or broadcast frames because both
duplicate frames A & B circulate the full ring.
5.3.2 HSR UNICAST TOPOLOGY
With unicast frames, there is just one destination and the frames are sent to that destination alone. All non-
r
ecipient devices simply pass the frames on. They do not process them in any way. In other words, D frames are
produced only for the receiving DANH. This is illustrated below.
P24xM Chapter 16 - Communications
P24xM-TM-EN-2.1 313
