GE P24DM - CB Healthy Check; Figure 124: Remote Control of Circuit Breaker

E01207
Protection
Trip
Remote
Control
Trip
Remote
Control
Close
Trip
Trip
Close
Close
Local
Remote

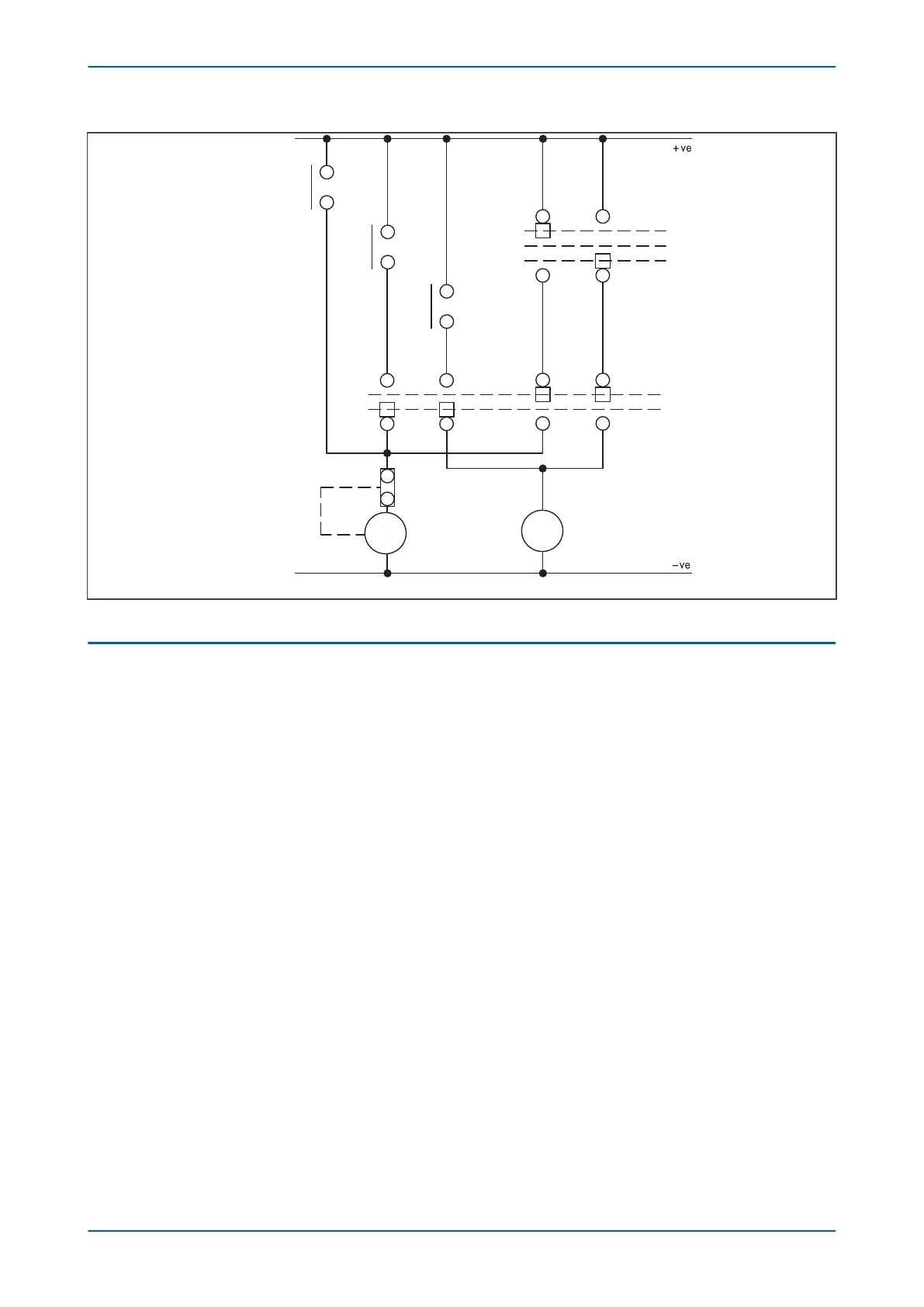

Figure 124: Remote Control of Circuit Breaker
7.6 CB HEALTHY CHECK
A CB Healthy check is available if required. This facility accepts an input to one of the opto-inputs to indicate that
the br
eaker is capable of closing (e.g. that it is fully charged). A time delay can be set with the setting CB Healthy
Time. If the CB does not indicate a healthy condition within the time period following a Close command, the device
will lockout and alarm.
P24xM Chapter 13 - Monitoring and Control
P24xM-TM-EN-2.1 263
