Labeling a sample area
The sample area label is used to identify data associated to the
sample area when exporting to a spreadsheet program.
1. If necessary, press Trackball until the QA trackball
assignment is selected.
2. Place the cursor on the sample area to label.
3. Press Update menu.
The System menu is displayed.
4. Select Label Sample area.
A Dialogue window with a free text field is displayed (see
Figure 9-4).
5. Type a name for the sample area.
6. Press OK to return to the Quantitative analysis screen.

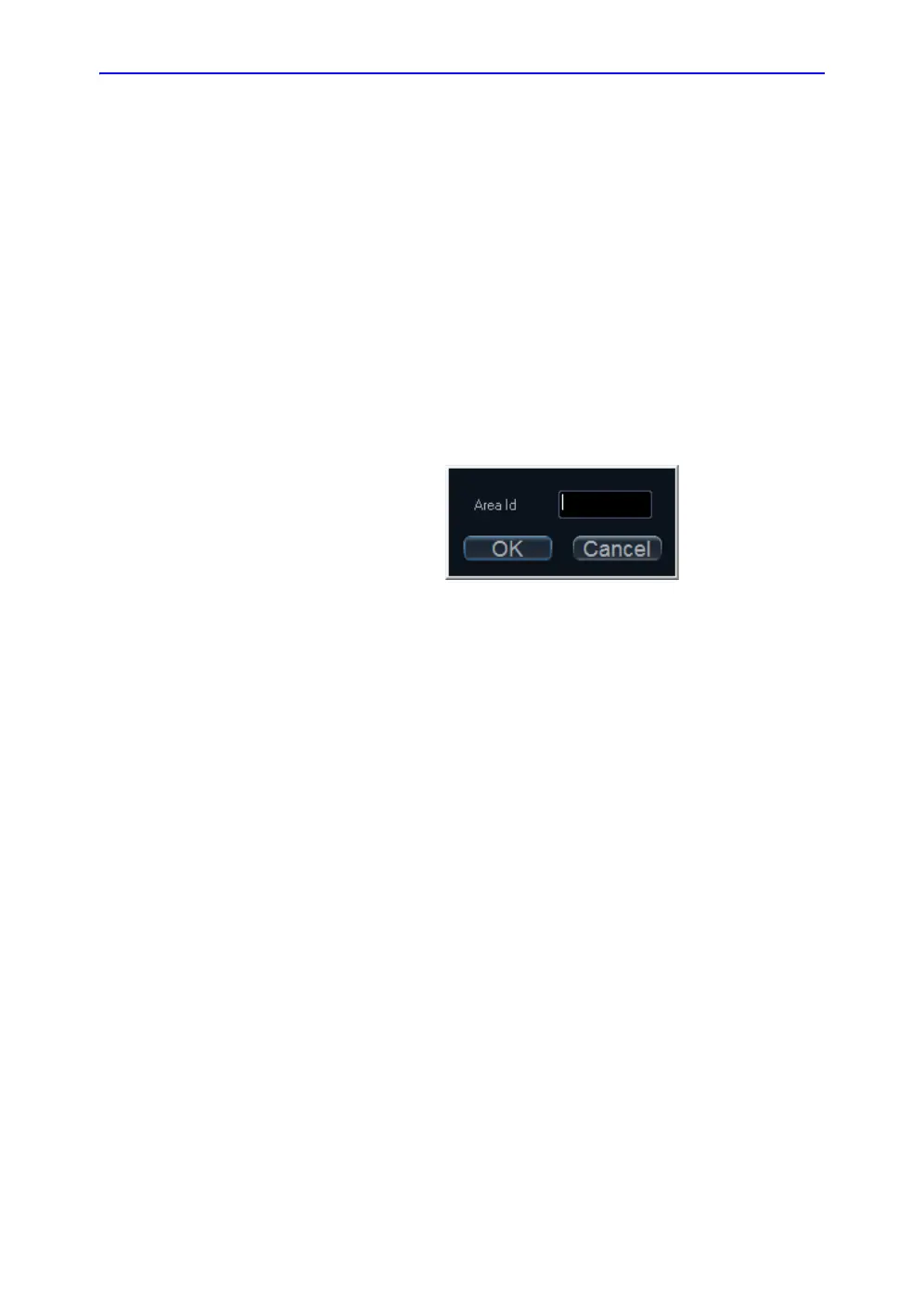

Figure 9-4. The sample area labeling window
Trace display
Y-axis
Auto-scaling
The system can be configured to display the full unit range or a
range according to the maximum and minimum values of the
displayed trace(s) (auto-scaling function). In addition, the
auto-scaling function can be set to be live update (updates while
the sample area is moved) or delayed (updated when the
sample area is anchored).
1. If necessary, press Trackball until the QA trackball
assignment is selected.
2. With the cursor in the Analysis window, press Update
menu.
The System menu is displayed.
3. Select Vertical auto-scaling.
The Vertical auto-scaling menu is displayed.
