Measurement Package
Vivid S70 / S60 – User Manual 12-33
BC092760-1EN 01
The OB table sheet
The OB table sheet enables the creation and edition of
user-defined OB tables.

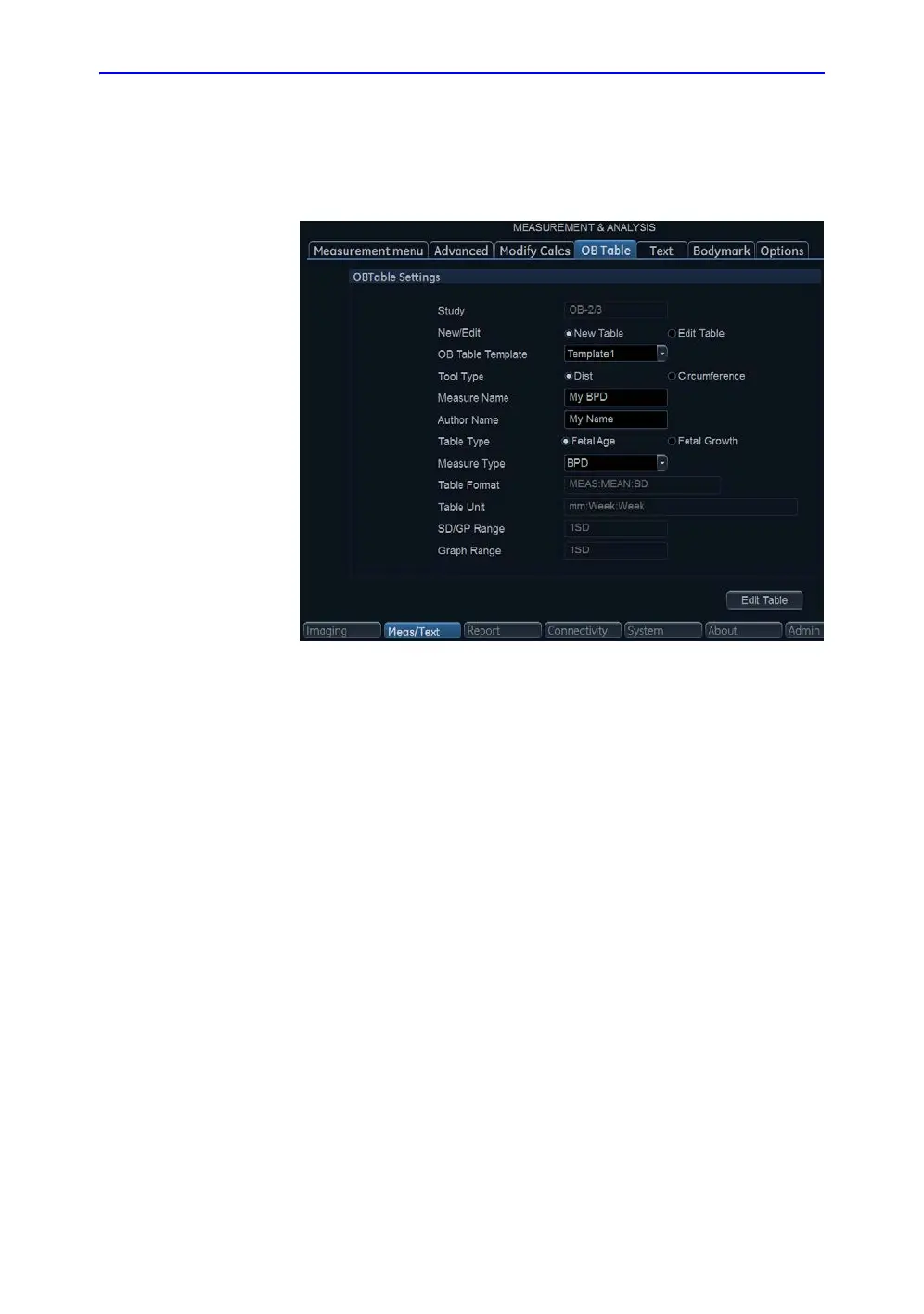

Figure 12-21. The OB table sheet
The following example describes how to create a fetal age
OB-2/3 table based on Bi Parietal Diameter measurements.
1. In the Measure/Text category, select the Measurement
menu.
2. In the Measurement menu sheet, select 2D mode.
3. Select the OB table sheet.
4. In the Measurement menu, select the category Obstetrics
and the OB-2/3 measurement study.
5. In the OB table sheet, check New table.
6. Enter or select the following:
• OB Table Template: when creating a new OB table,
select Template (1 - 7) which you want to use as the
basis of the user programmable OB Table (page 12-34).
When editing an existing user OB table, select the
desired OB table to edit.
• Tool type: Select the type of measurement (e.g.
Distance)
