Site requirements
Vivid S70 / S60 – User Manual 3-5
BC092760-1EN 01
Voltage level check
Check the rating label on the rear side of the system (see
Figure 3-1).

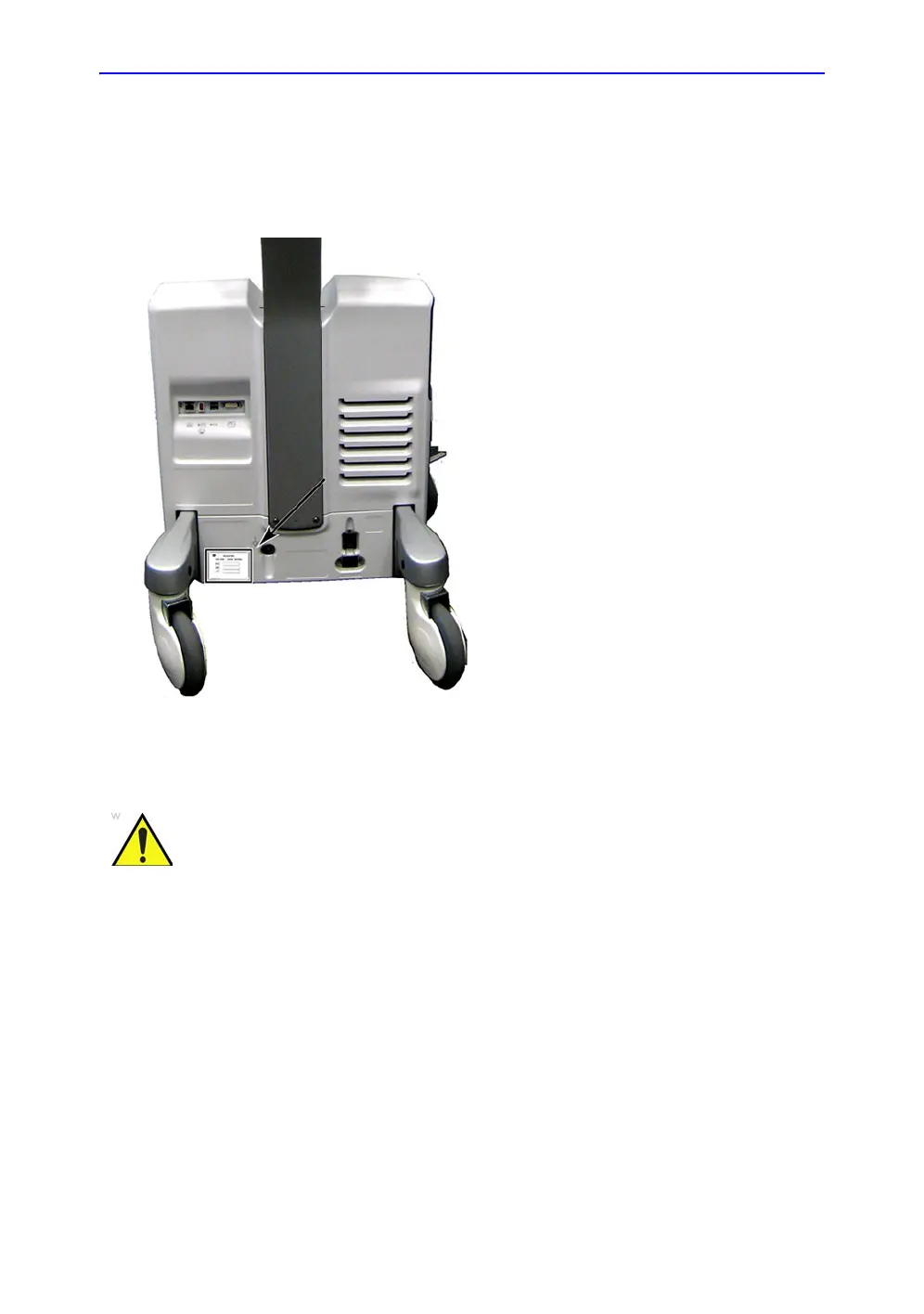

Figure 3-1. The rating label location
Check the voltage range indicated on the label:
• 100–240 VAC, 50/60 Hz, 500 VA
At 110 V: 6.4 A
At 115 V: 6.0 A
At 230 V: 3.0 A
If the mains supply is not within the specified range, do not
connect the system to the power source. Contact your local
distributor or the appropriate support resource.
