Prepare the System for Use
3-6 Vivid S70 / S60 – User Manual
BC092760-1EN
01
Connecting to the electrical outlet
1. Ensure that the wall outlet is of appropriate type, and that
the power switch is turned off.
2. Uncoil the power cable, allowing sufficient slack so that the
system can be moved slightly.
3. Attach the power plug to the system and secure it in place
by using the retaining clamp.
4. Secure the power plug to the wall outlet.

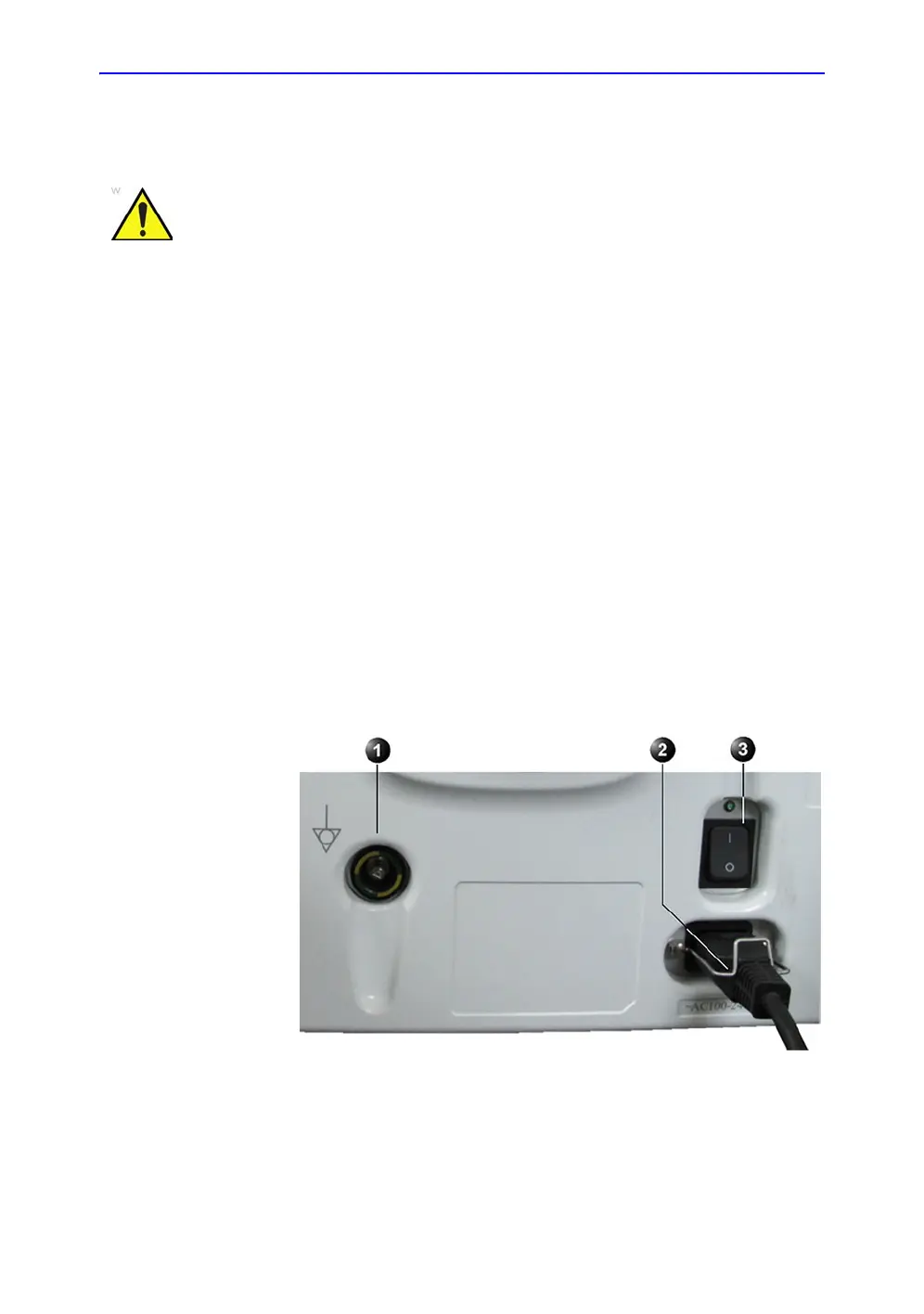

Figure 3-2. Power plug
POWER OUTAGE MAY OCCUR. The ultrasound system
requires a dedicated single branch circuit. To avoid circuit
overload and possible loss of critical care equipment, make
sure you DO NOT have other equipment operating on the
same circuit.
The system’s power must be supplied from a separate,
properly rated outlet to avoid risk of fire. Refer to ‘Power
requirements’ on page 3-2 for rating information.
The power cord should not, under any circumstances, be
altered to a configuration rated less than that specified for the
current.
Do not use an extension cord or adapter plug.
1. Ground socket
2. Retaining clamp for power plug
3. Circuit breaker
