Operation – Monitoring and Diagnosis
User Manual corpuls
3
122 ENG - Version 2.1 – P/N 04130.2
6.6.2 Preparing CO
2
Monitoring
1. Attach the appropriate disposable adapter to the capONE sensor (item 3).
Fig. 6-22 shows the three nasal adapters, Fig. 6-23 the endotracheal tube
adapter.

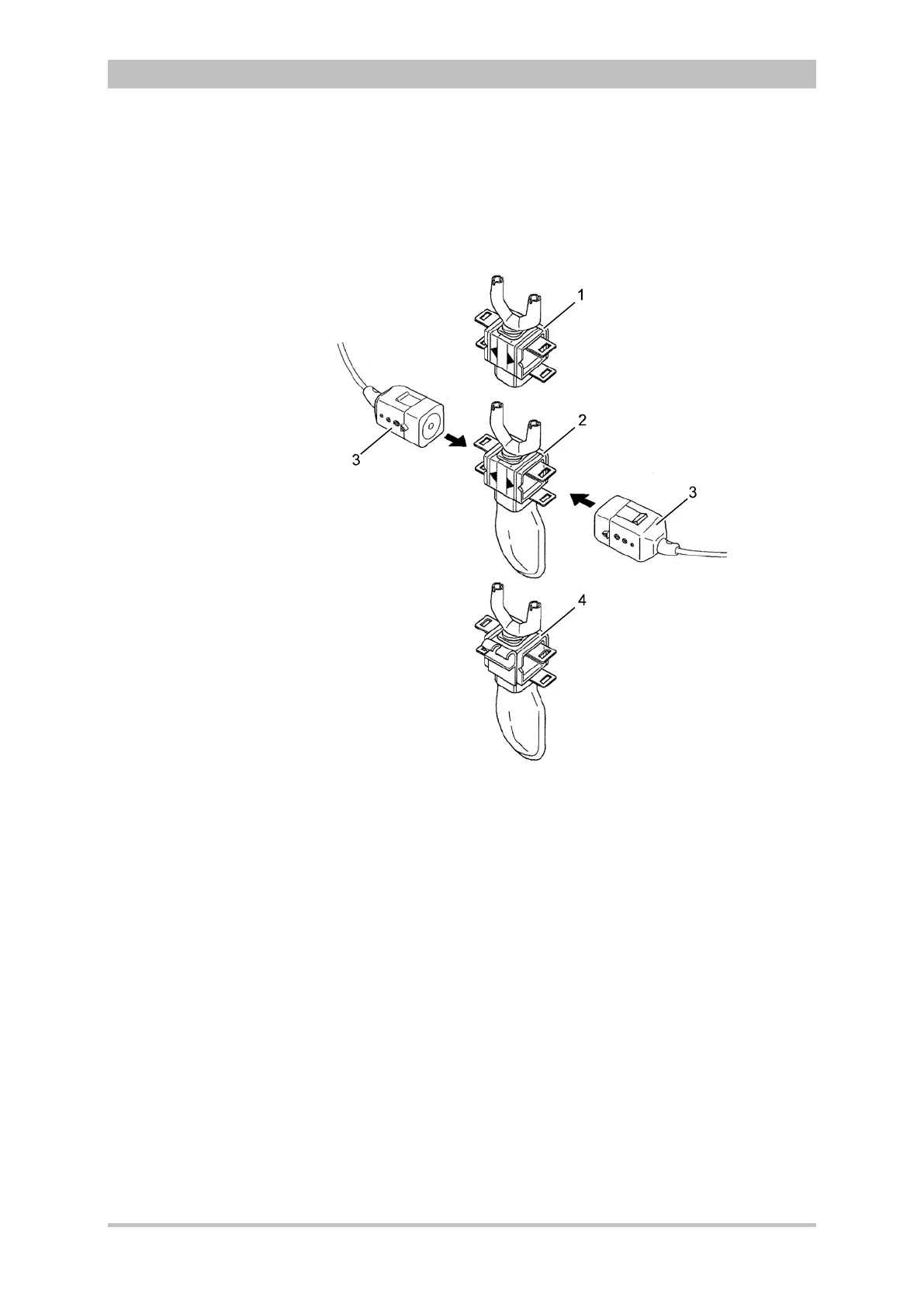

Fig. 6-22 CO
2
monitoring, nasal adapter
1 CO
2
disposable nasal adapter (YG-120T)
2 CO
2
disposable nasal/oral adapter (YG121-T)
3 capONE sensor
4 CO
2
disposable nasal/oral adapter,
adaptable to an O
2
cannula (YG-122T)
