GS corpuls3 - Temperature Monitoring (Option)

User Manual corpuls
3
Operation – Monitoring and Diagnosis
ENG - Version 2.1 – P/N 04130.2 123

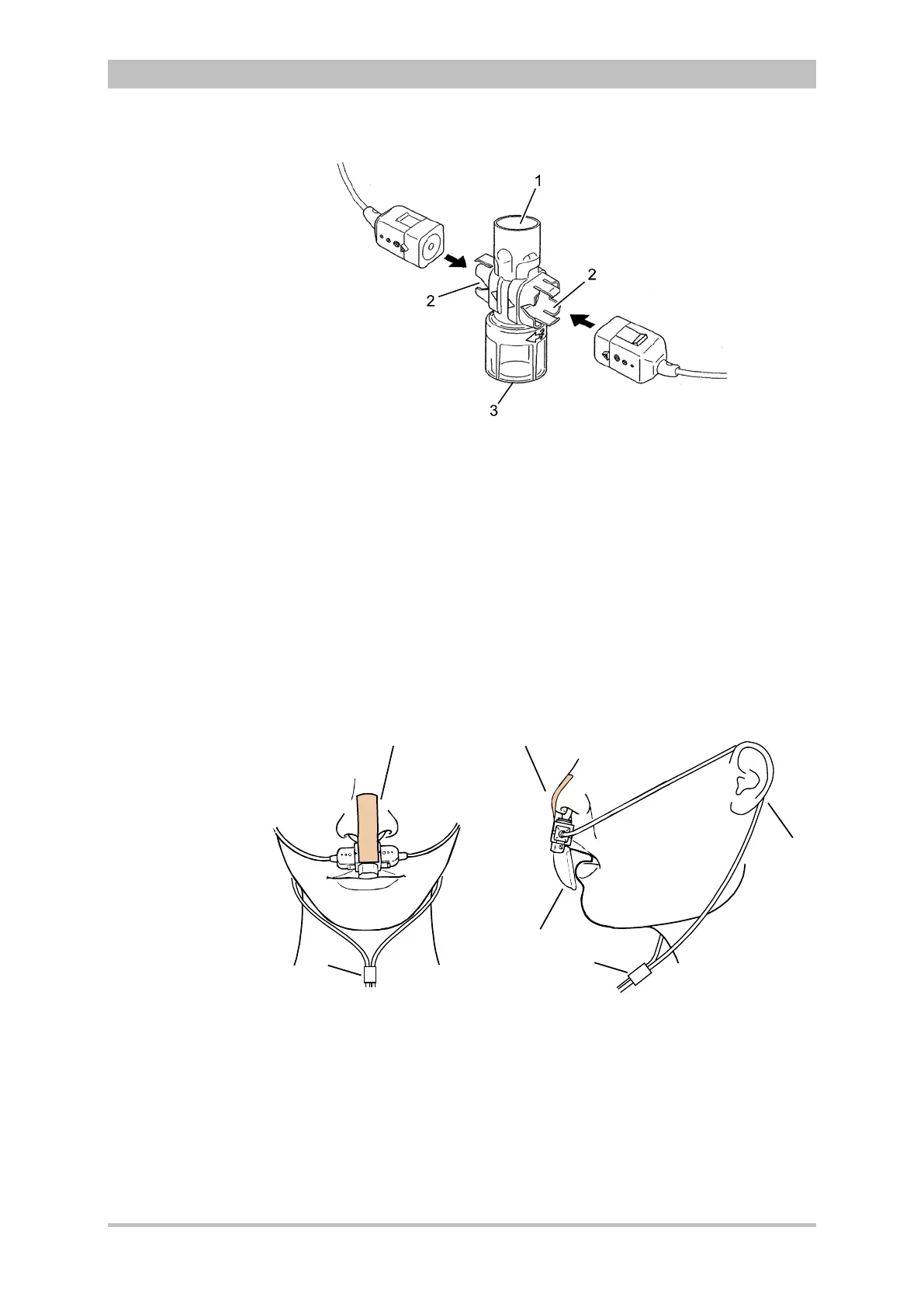

Fig. 6-23 CO
2
monitoring, disposable endotracheal tube adapter
1 Respirator/ventilation bag connection
2 CO
2
sensor connection
3 Endotracheal tube connection (YG-111T)
2. Attach the CO
2
sensor unit to the patient according to the manufacturer’s
instructions:
• Position the sensor cable behind the ears (Fig. 6-24, item 1) and slide the
fastening ring (Fig. 6-24, item 2) loosely towards the chin.
• Attach the disposable adapter to the nose with the adhesive tape
provided for this purpose (Fig. 6-24, item 3).
• The oral breath collector (Fig. 6-24, item 4) must not be more than 10 mm
away from the lower lip.
3
4
1
3
2
2
Fig. 6-24 Fitting the disposable CO
2
nasal(/oral) adapter on the patient
1 Cable positioning
2 Fastening ring
3 Adhesive tape
4 Oral breath collector
The CO
2
sensor unit and the patient box or CO
2
sensor unit and intermediate
cable must not be connected or disconnected during operation.
Note
