GW Instek MFG-2000 Series - Setting the Pulse Duty Time

OPERATION
103
Setting the Pulse Duty Time
Instead of setting the pulse width of the pulse, the duty of the pulse
can be set. The settable duty times depend on the leading & trailing
edge time settings, as defined below:
Pulse Duty Cycle ≥ 100×Minimum Pulse Width ÷ Pulse Period
Pulse Duty Cycle < 100×(1-Minimum Pulse Width÷Pulse Period)
Panel Operation

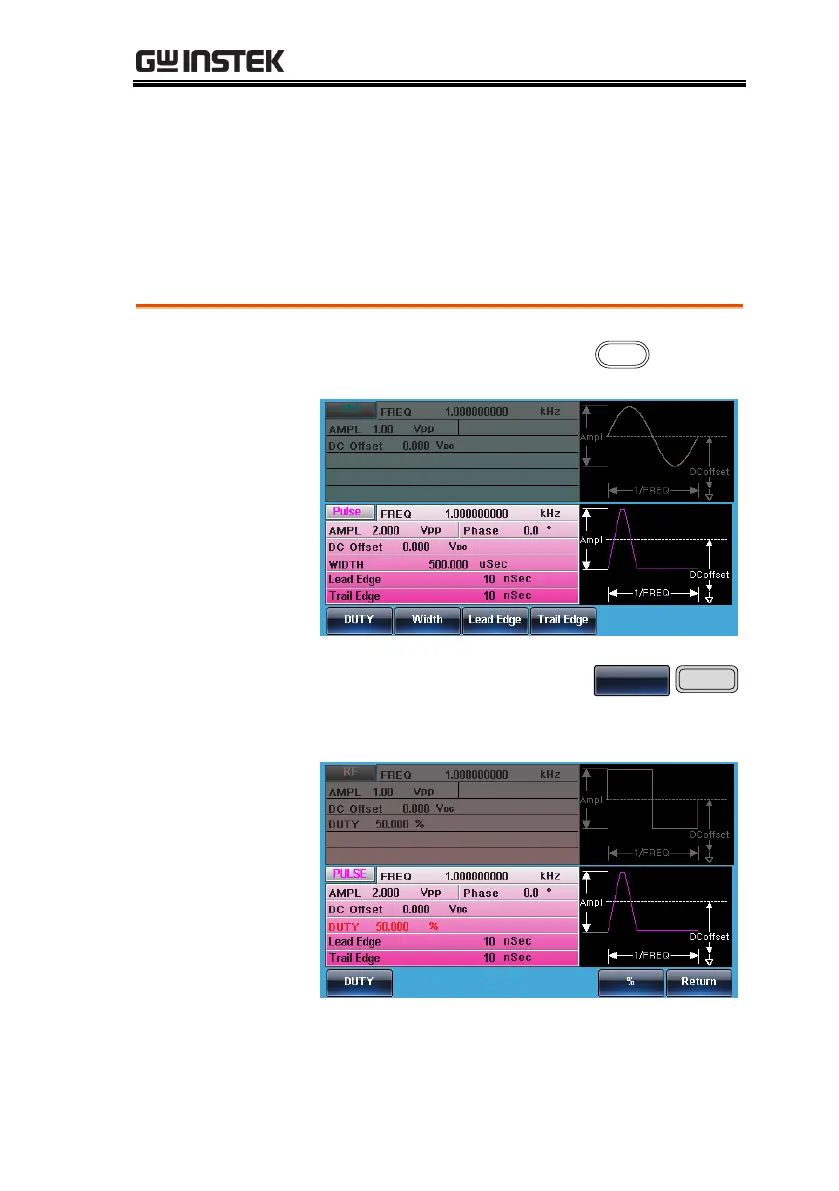

1. Press the Waveform key.

2. Press F1 (DUTY). The DUTY
parameter will be highlighted
in the parameter window.
DY

