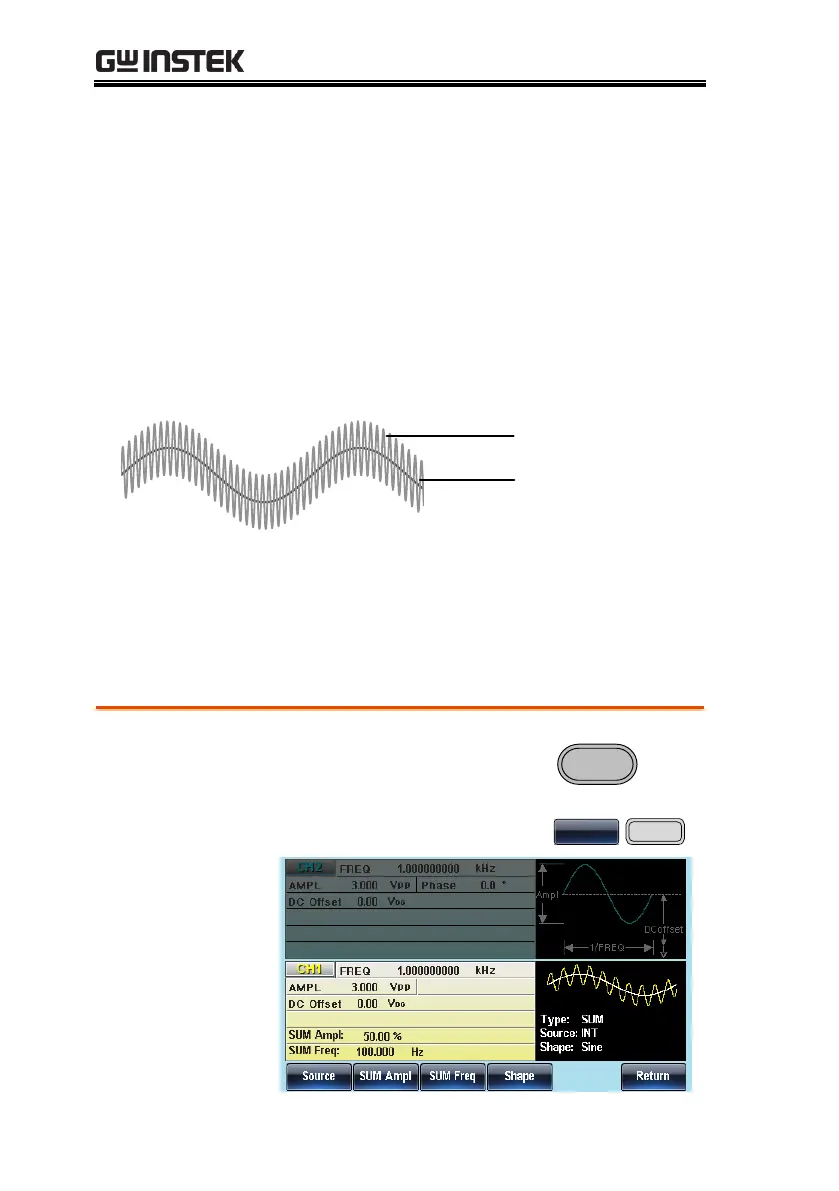

SUM modulation
SUM modulation adds the modulating waveform to the carrier
waveform. The amplitude of the modulating waveform is set as a
percentage of the carrier amplitude.
Only one mode of modulation can be enabled at any one time for
the selected channel. If SUM is enabled, any other modulation mode
will be disabled. Likewise, burst and sweep modes cannot be used
with SUM modulation and will be disabled when SUM is enabled.
SUM Modulated
waveform
SUM Freq
(modulation frequency)
Selecting SUM modulation
For SUM modulation, the modulated waveform amplitude and
offset is determined by the carrier wave.
Panel Operation
1. Press the MOD key.

2. Press F5 (SUM).


