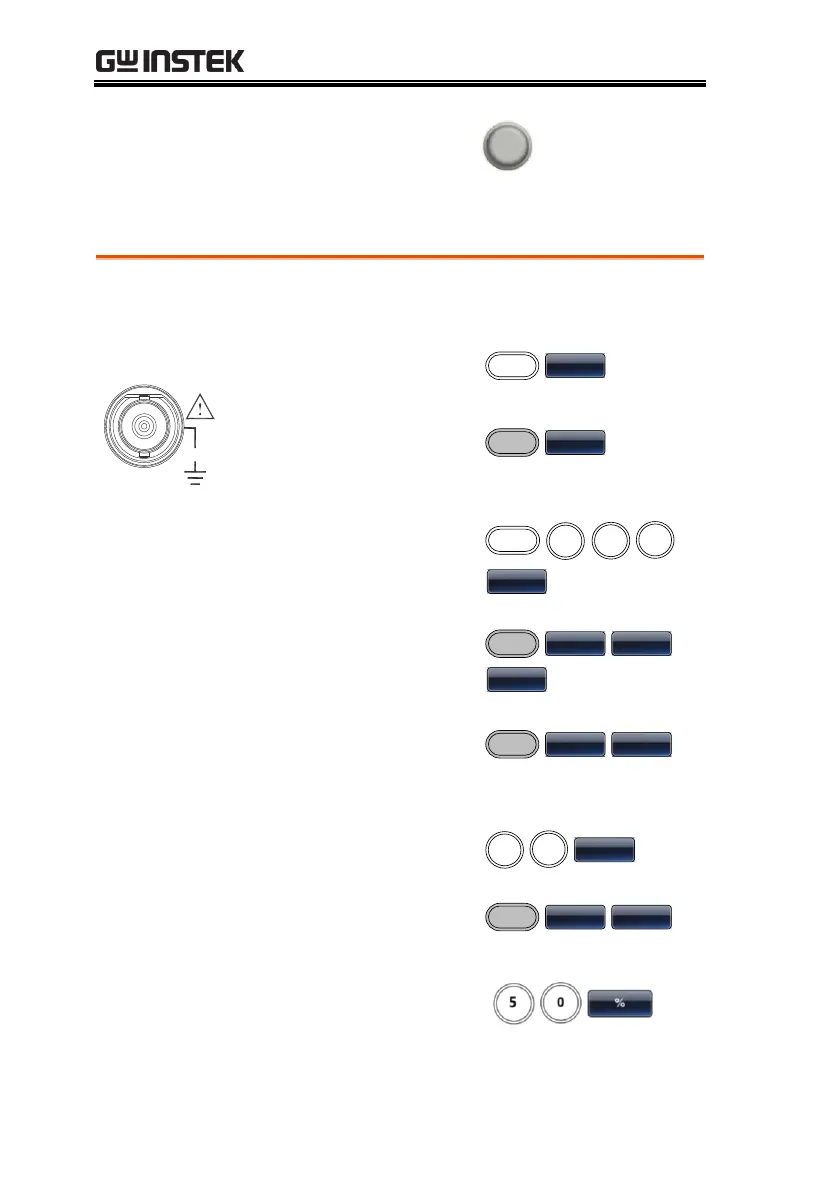

9. Press the Output key
PWM Modulation
Example: PWM modulation. 800Hz carrier, 15kHz modulated sine
wave. 50% duty cycle. Internal source.
Output:

     
     
     
    
   
     
  

     

     
     
     
1. Press Waveform and
select Square (F2)

qa
2. Press MOD and select
PWM(F6)


Input: N/A
3. Press the Freq/Rate
key, followed by
8+0+0 Hz (F4).

Q


z
4. Press the MOD key,
select PWM (F6),
Shape (F4), Sine(F1).

 ha

5. Press MOD, select
PWM(F6),PWM
Freq(F3)

 q
6. Press 1 + 5+ kHz (F3).


kz
7. Press MOD, select
PWM(F6),Duty(F2)

 D
8. Press 5 + 0 + % (F1)
