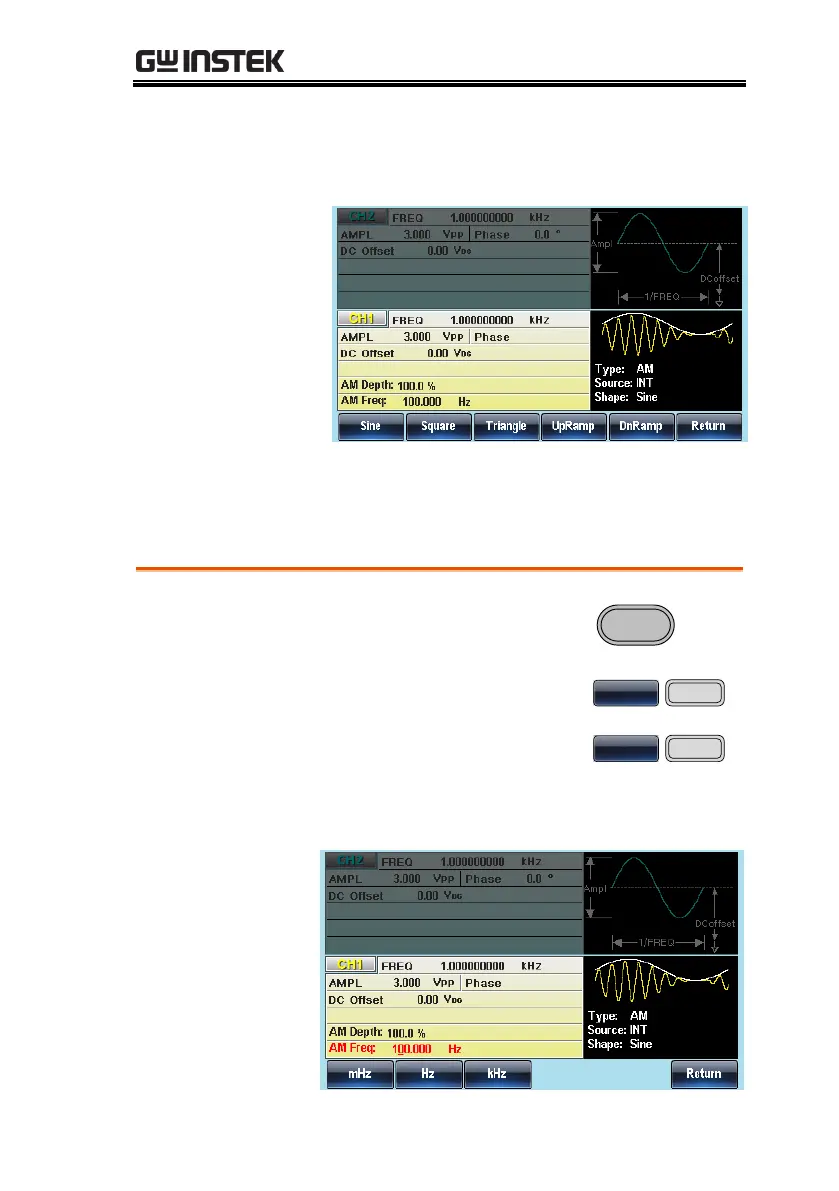

MODULATION
123
UpRamp
100% Symmetry
Triangle
50% Symmetry
DnRamp
0% Symmetry
AM Frequency
The frequency of the modulation waveform (AM Frequency) can be
set from 2mHz to 20kHz.
Panel Operation
1. Press the MOD key.

2. Press F1 (AM).


3. Press F3 (AM Freq)
q

