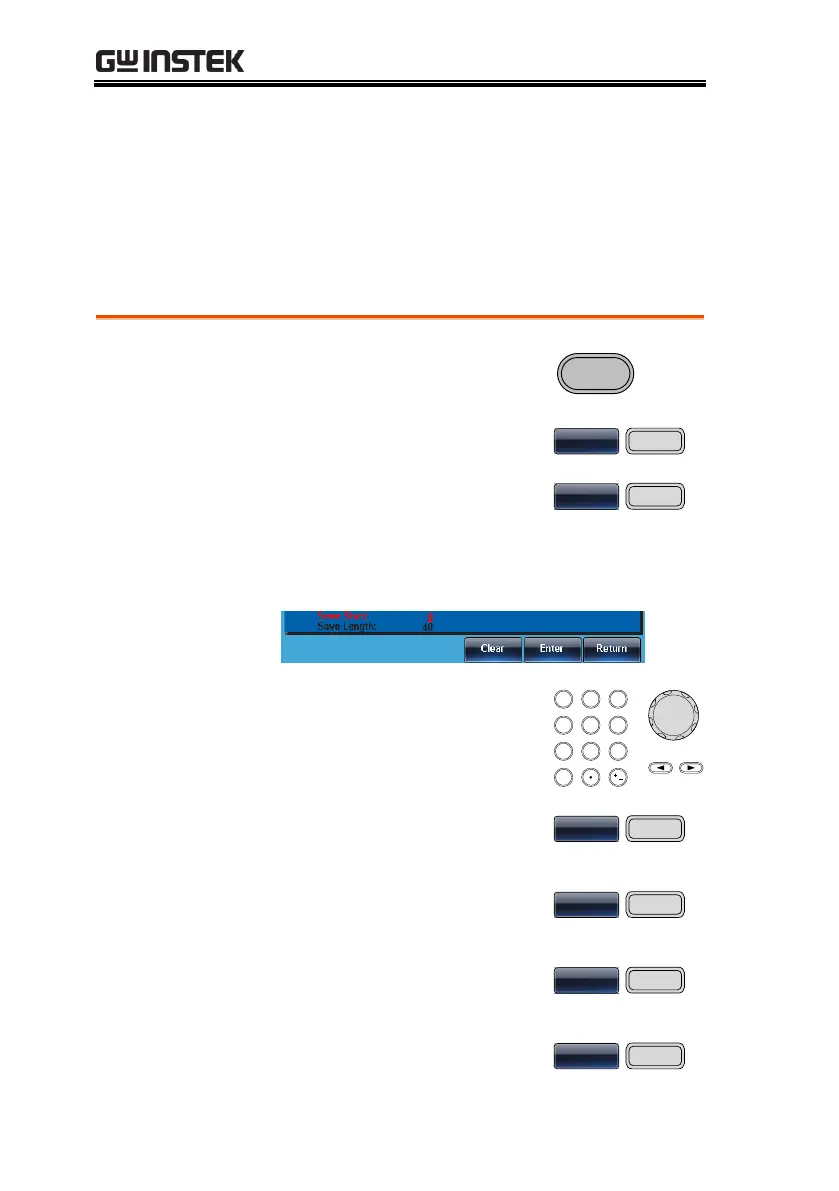

Saving/Recalling an Arbitrary Waveform
The MFG-2000 can save and load arbitrary waveforms from 10
internal memory slots. Arbitrary waveforms can also be saved and
loaded from a USB memory stick.
Saving a Waveform to Internal Memory
Panel Operation
1. Press the ARB key.

2. Press F4 (Save).
av

3. Press F1 (Start).
a

4. The Start property will become highlighted in
red.
5. Use the arrow keys and scroll
wheel or number pad to enter
the Start address.

/


 



6. Press F5 (Enter) to confirm
the start point.
E

7. Press F6 (Return) to return to
the previous menu.


8. Repeat steps 4~8 for Length
(F2).
gh

9. Press F3 (Memory).


