Setting the Amplitude
Panel Operation

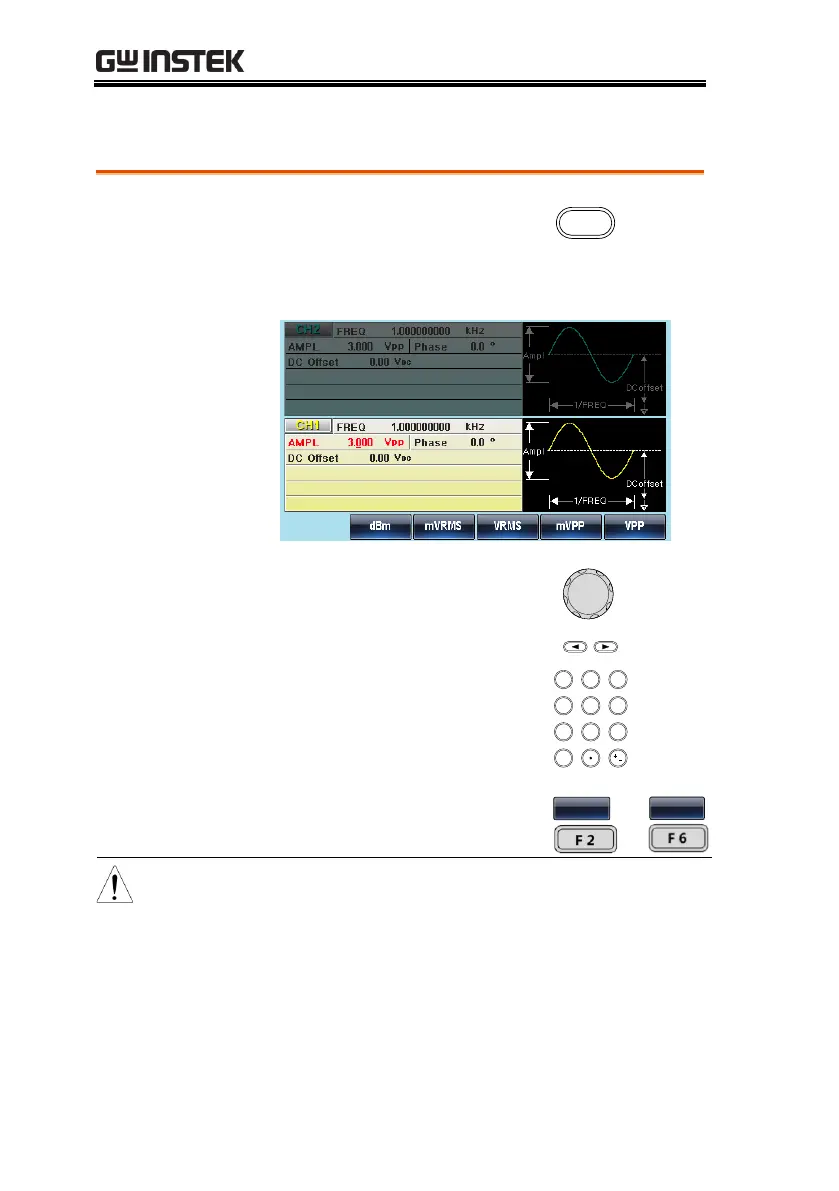

1. Press the AMPL key.

2. The AMPL parameter will become highlighted
in the parameter window.
Parameter
settings
3. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel
b, number pad to enter the
Duty range.

/


 




/


 



Choose a unit type by
pressing F2~F6.
dB
~
V
50Ω load
High Z
Range
1mVpp~10Vpp
2mVpp~20Vpp
Unit
Vpp, Vrms, dBm
