OPERATION
93

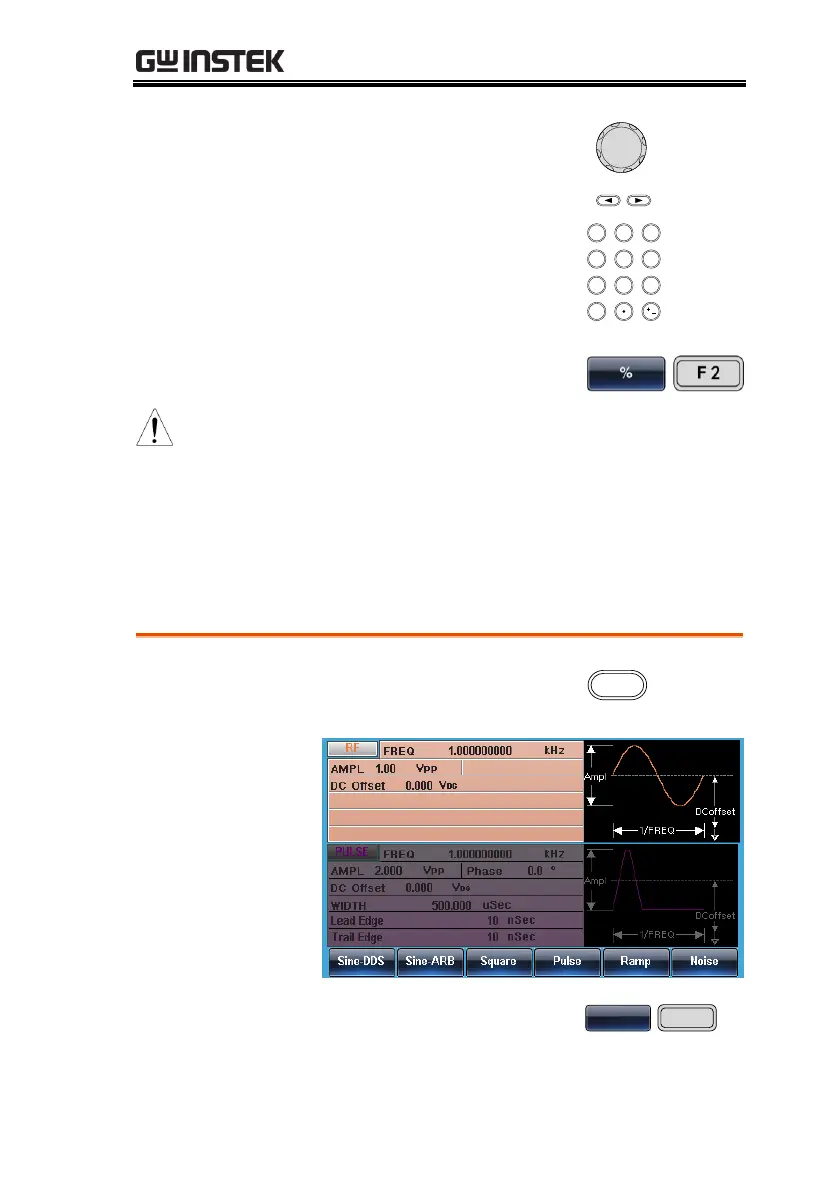

4. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel
b, number pad to enter the
Duty range.

/


 




/


 



Press F2 (%) to select %
units.
Range Duty
0.01%~99.99%(limited by the
current frequency setting)
5. To set parameter
Load/Frequency/Amplitude/DC Offset,
please see page 97 - 101.
Pulse Waveform
Panel Operation
1. Press the Waveform key.

2. Press F4 (Pulse) to create a
triangle waveform.


