MFG-2000 Series User Manual
128
2. Press F1 ~ F5 to select the
carrier waveform.


~
a

Ranage
Carrier Waveforms
Sine

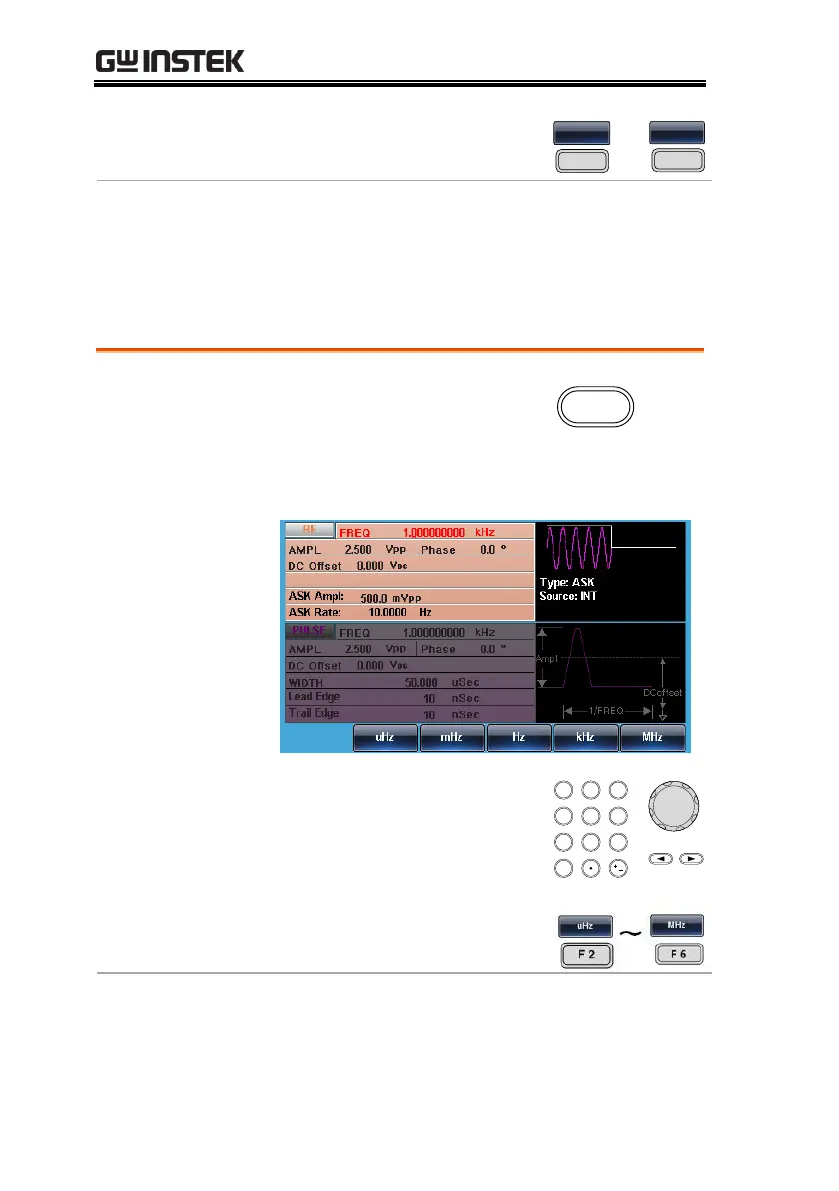

ASK Carrier Frequency
The maximum carrier frequency depends on the carrier shape. The
default carrier frequency is 1kHz.
Panel Operation
1. Press the FREQ/Rate key to
set the carrier frequency.
Q
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the selector keys and
scroll wheel or number pad
to enter the carrier frequency.

/


 



4. Press F2~F6 to select the FSK
frequency units.
Range
Carrier Shape
Carrier Frequency
Sine wave
1μHz~320MHz(max)
Default frequency
1kHz

