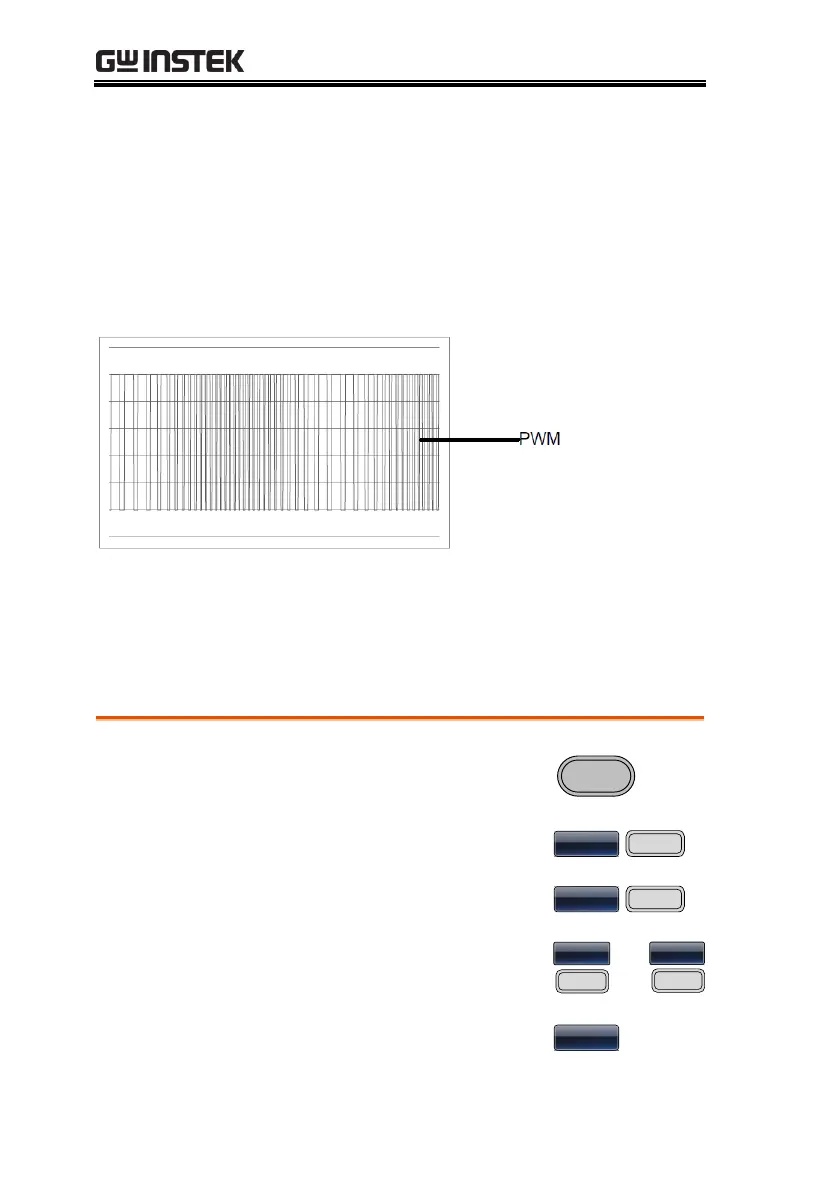

Pulse Width Modulation
For pulse width modulation the instantaneous voltage of the
modulating waveform determines the width of the pulse waveform.
Only one mode of modulation can be enabled at any one time for
the selected channel. If PWM is enabled, any other modulation
mode will be disabled. Likewise, burst and sweep modes cannot be
used with PWM and will be disabled when PWM is enabled.
Selecting Pulse Width Modulation
When selecting PWM, the current setting of the carrier frequency,
the amplitude modulation frequency, output, and offset voltage
must be considered.
Panel Operation
1. Press the MOD key.

2. Press F6 (PWM).


3. Press F1 (Source).


4. Press F1 (INT) or F2 (EXT) to
select the source.


~
EX

5. Press Return to return to the
previous menu.

