GW Instek MFG-2000 Series - Setting the DC Offset

MFG-2000 Series User Manual
112
Setting the DC Offset
Panel Operation

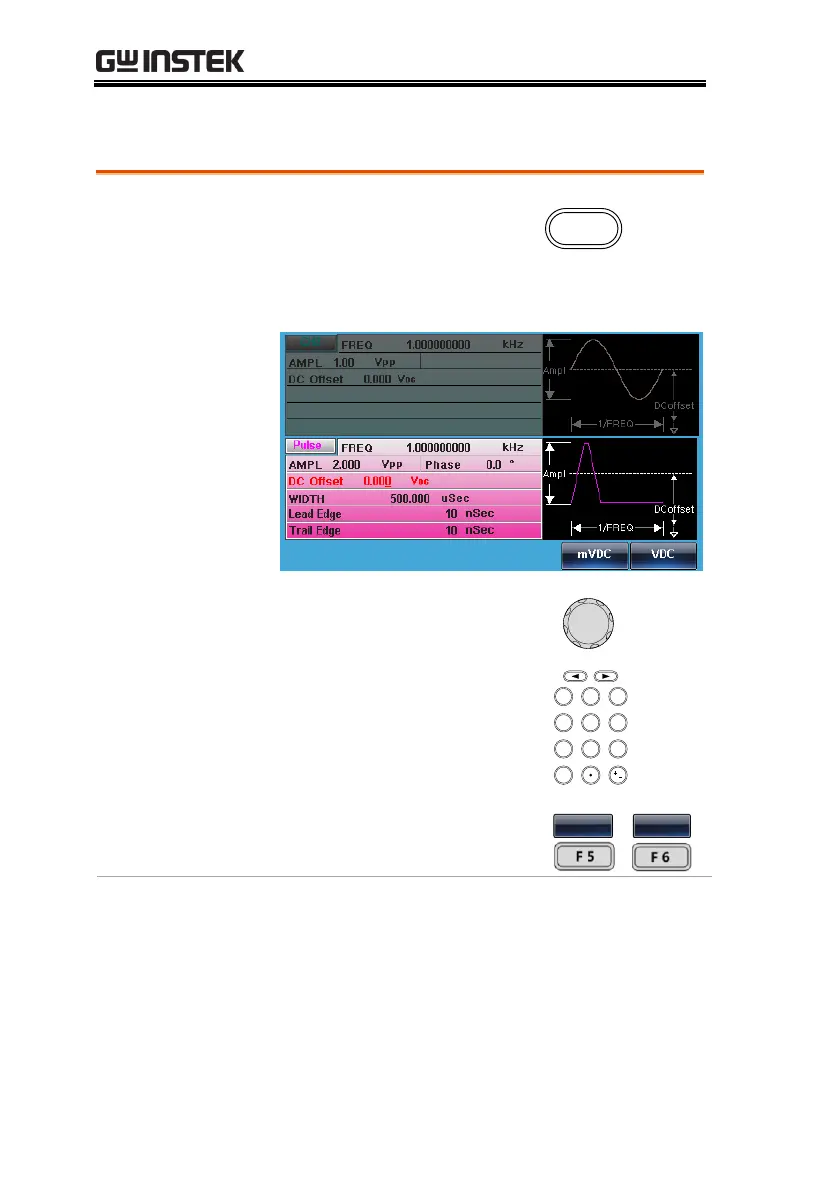

1. Press the DC Offset key.

2. The DC Offset parameter will become
highlighted in the parameter window.
3. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel
b, number pad to enter the
Duty range.

/


 




/


 



Press F5 (mVDC) or F6 (VDC)
to choose a voltage range.
VD
VD
50Ω load
High Z
Range
±5Vpk
±10Vpk
