MODULATION
127
Amplitude Shift Keying(ASK)
ASK modulation is used to switch the output amplitude between two preset
amplitude values (carrier amplitude and modulation amplitude). Only one
modulation mode can be used at one time. Sweep and burst mode
also cannot be used with ASK. Enabling ASK will disable Sweep or
Burst mode. ASK modulation is only for RF Channel.

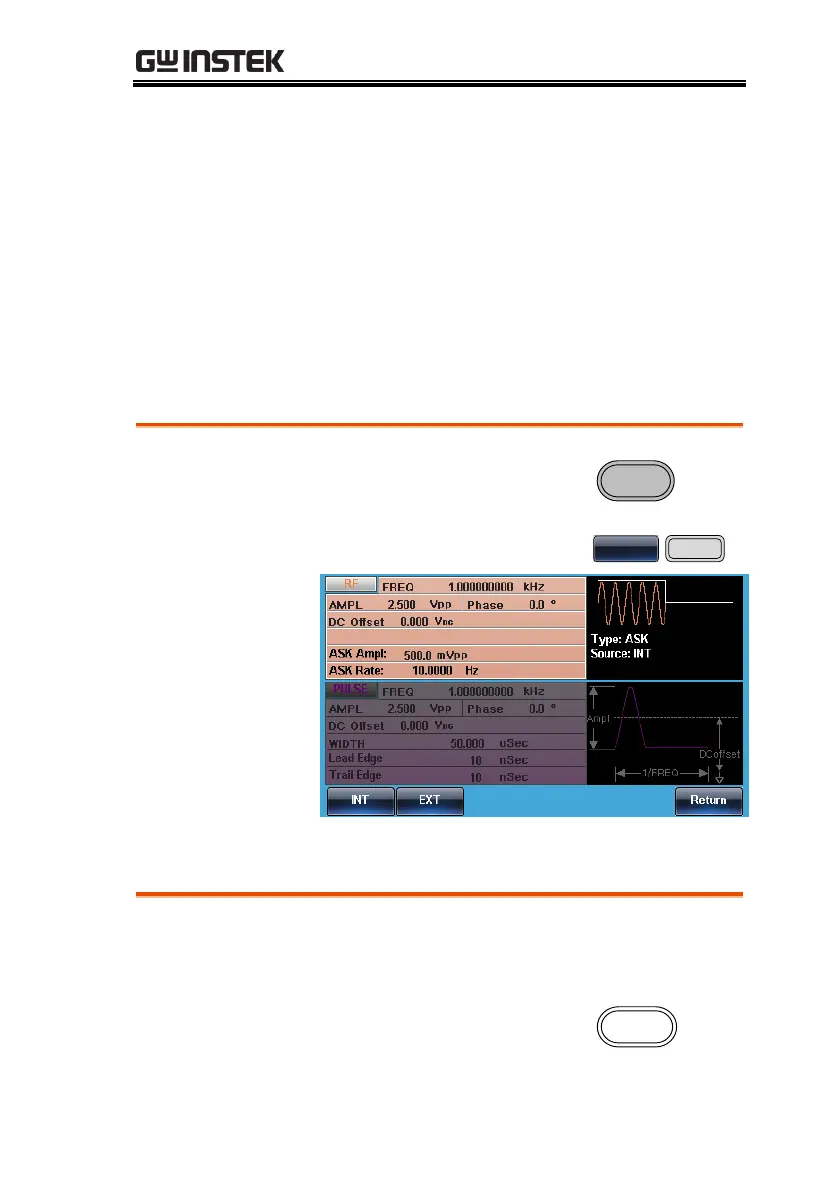

Selecting ASK Modulation
When using the ASK mode, the output waveform uses the default
settings for carrier frequency, amplitude and offset voltage.
Panel Operation
1. Press the MOD key.

2. Press F2 (ASK).
K

ASK Carrier Shape
Background
The default waveform shape is set to sine. Other
waveforms cannot be used as carrier waves.
Panel Operation
1. Press the Waveform key.

