GW Instek MFG-2000 Series - Setting the Load

OPERATION
109
Setting the Load
Panel Operation

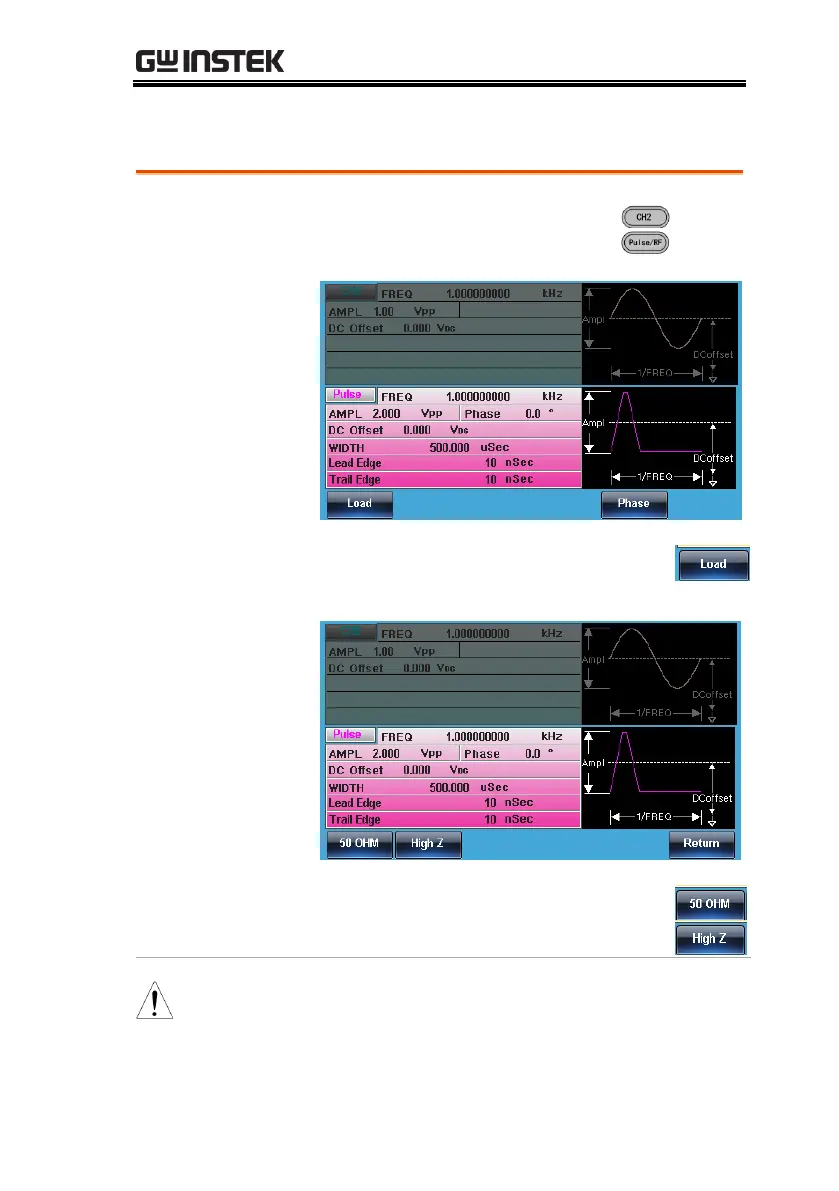

1. Press the Pulse or
Pulse/RF key.
21XX
22XX
Parameter
settings
2. Load setting. Select the corresponding
channel and then press the F1(Load) .
3. Press the F1(50OHM) or F2(High Z) to
set Load value.
AMPL is twice under High Z loading than that at 50
ohm. Users can check load setting state for each
channel in UTIL.
