Modulation Duty Cycle

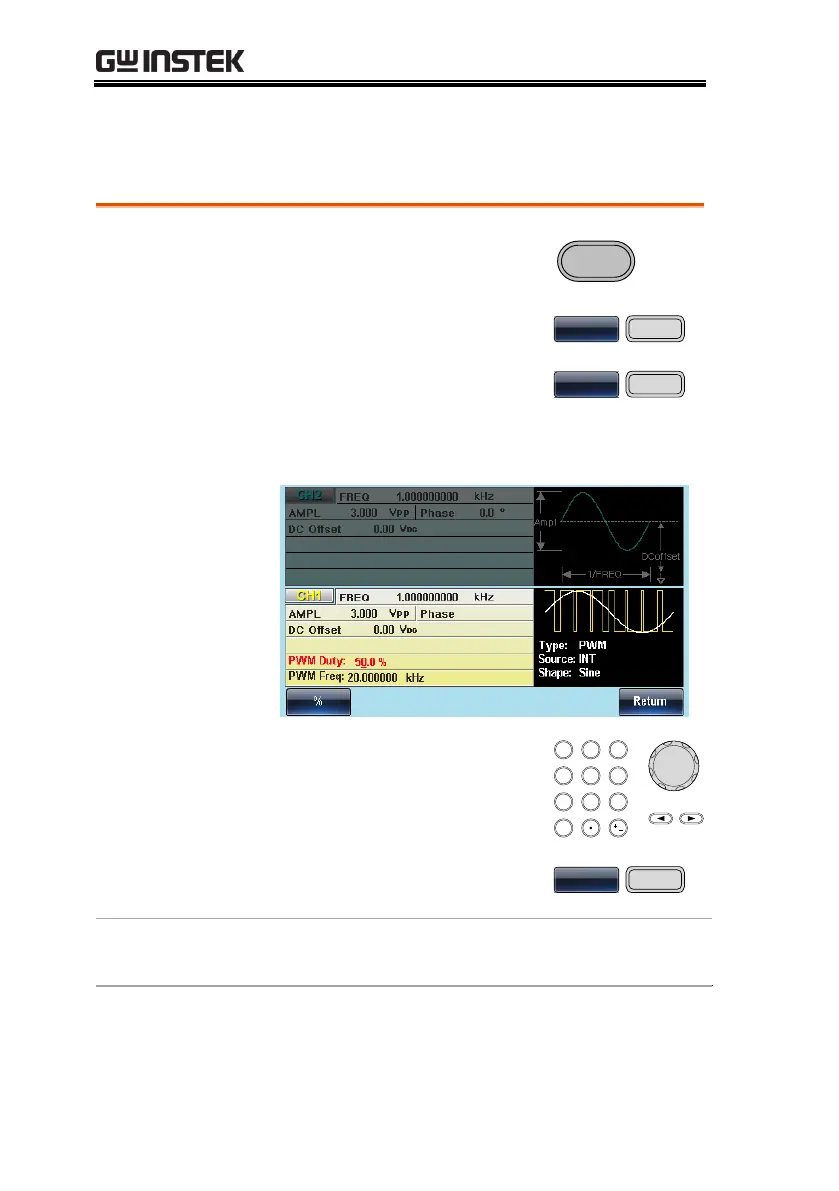

Duty function is used to set the duty cycle as percentage (%).
Panel Operation
1. Press the MOD key.

2. Press F6 (PWM).


3. Press F2 (Duty).
D

4. The PMW Duty parameter will become
highlighted in the parameter window.
5. Use the selector keys and
scroll wheel or number pad
to enter the duty cycle

/


 



6. Press F1(%) to select
percentage units.
%

Range
Duty Cycle
0%~100%
Default
50%
Note
Pulse waveforms can be modulated with an external
source using the external source function. When using
an external source, the pulse width is controlled by the
± 5V MOD INPUT terminal.
