GW Instek MFG-2000 Series User Manual

MFG-2000 Series User Manual
188

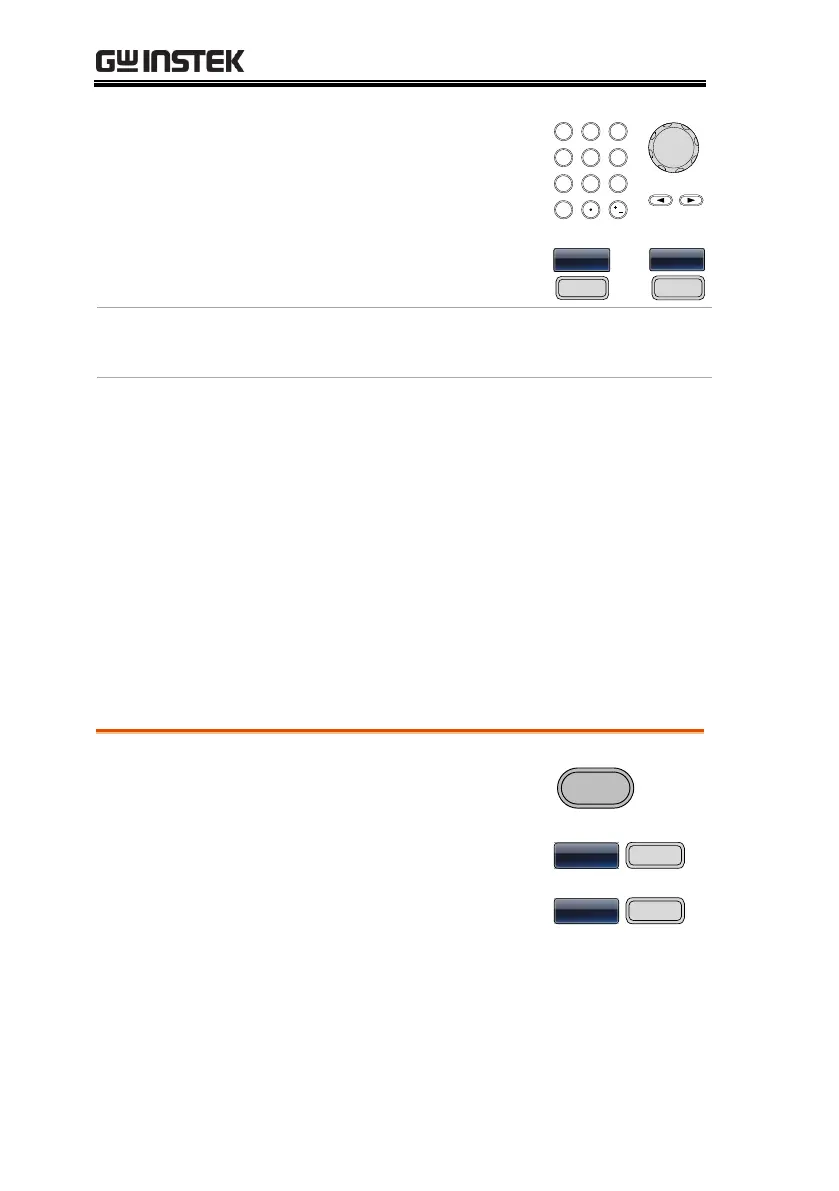

5. Use the arrow keys and scroll
wheel or number pad to enter
period time.

/


 



6. Press F1~F3 to choose the
period time unit.
E

~
E

Range
Period time
1ms~500s
Default
10ms
Note
Burst period is only applicable for internal triggers.
Burst period settings are ignored when using gated
burst mode or for external and manual triggers.
The burst period must be large enough to satisfied the
condition below:
Burst Period>Burst Count/Wave frequency + 200ns.
Burst Phase
Burst Phase defines the starting phase of the burst waveform. The
default is 0˚.
Panel Operation
1. Press the Burst key.

2. Press F1 (N Cycle).


3. Press F3 (Phase).
ha

4. The Phase parameter will become highlighted
in the Waveform Display area.
