GETTING STARTED
17


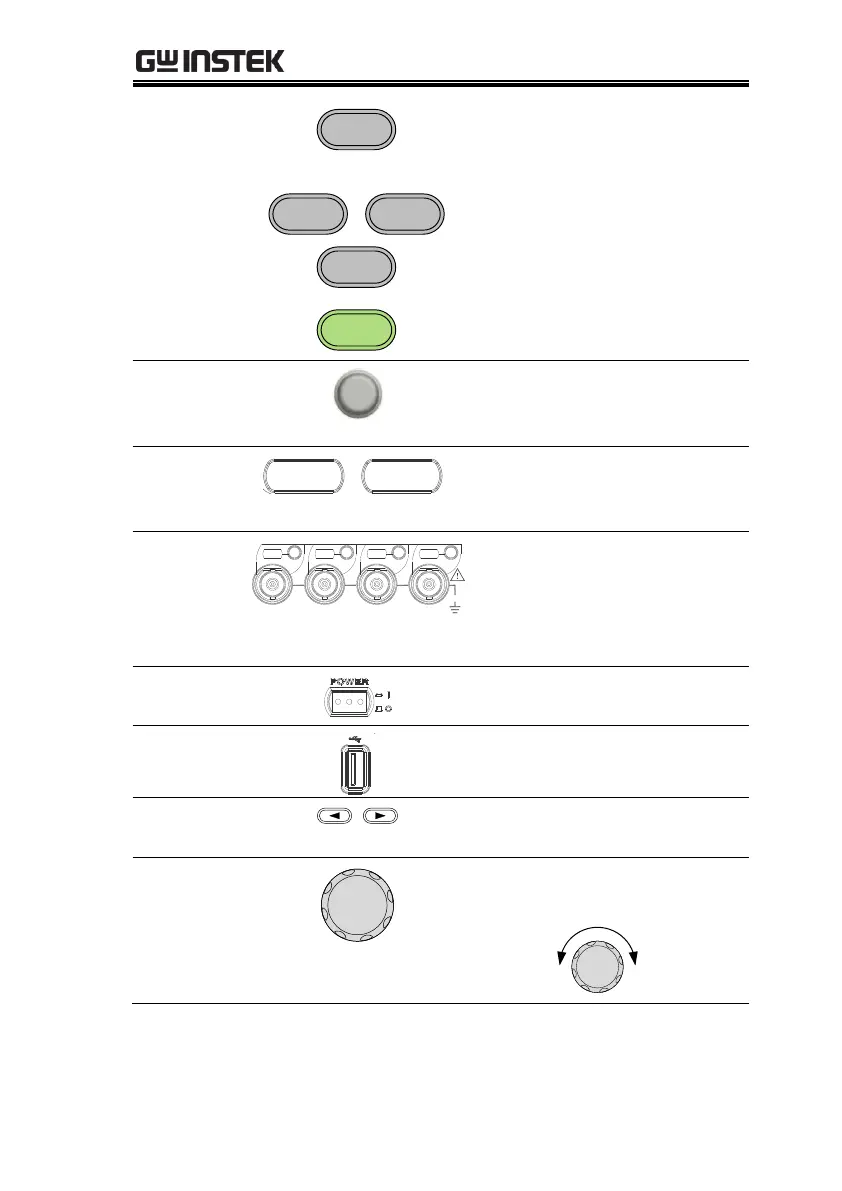

ARB is used to set the
arbitrary waveform
parameters.



The MOD, Sweep and Burst
keys are used to set the
modulation, sweep and burst
settings and parameters.
Preset Key

The preset key is used to
recall a preset state.
Output Key
The Output key is used to
turn on or off the waveform
output.
Channel
Select Keys
  
   
        
  
    
    
      
     










/
  

  

        
M F G - 2 5 3 2 M P
      
   
 
 
   
            
   
The channel select key is used
to switch between the four
output channels.
Output
ports




     
   
CH1: Channel 1 output port
CH2: Channel 2 output port
Pulse: Pulse output port
RF: RF output port
Power
Button




     
   
Turns the power on or off.
USB Host
  
   
        
  
    
  
      
       










/
  

  

          
M F G - 2 5 3 2 M P
      
   
 
 
   
                
   
USB type-A host port.
Arrow Keys
Used to select digits when
editing parameters.
Scroll Wheel
The scroll wheel is used to
edit values and parameters.
Decrease Increase
