MFG-2000 Series User Manual
76

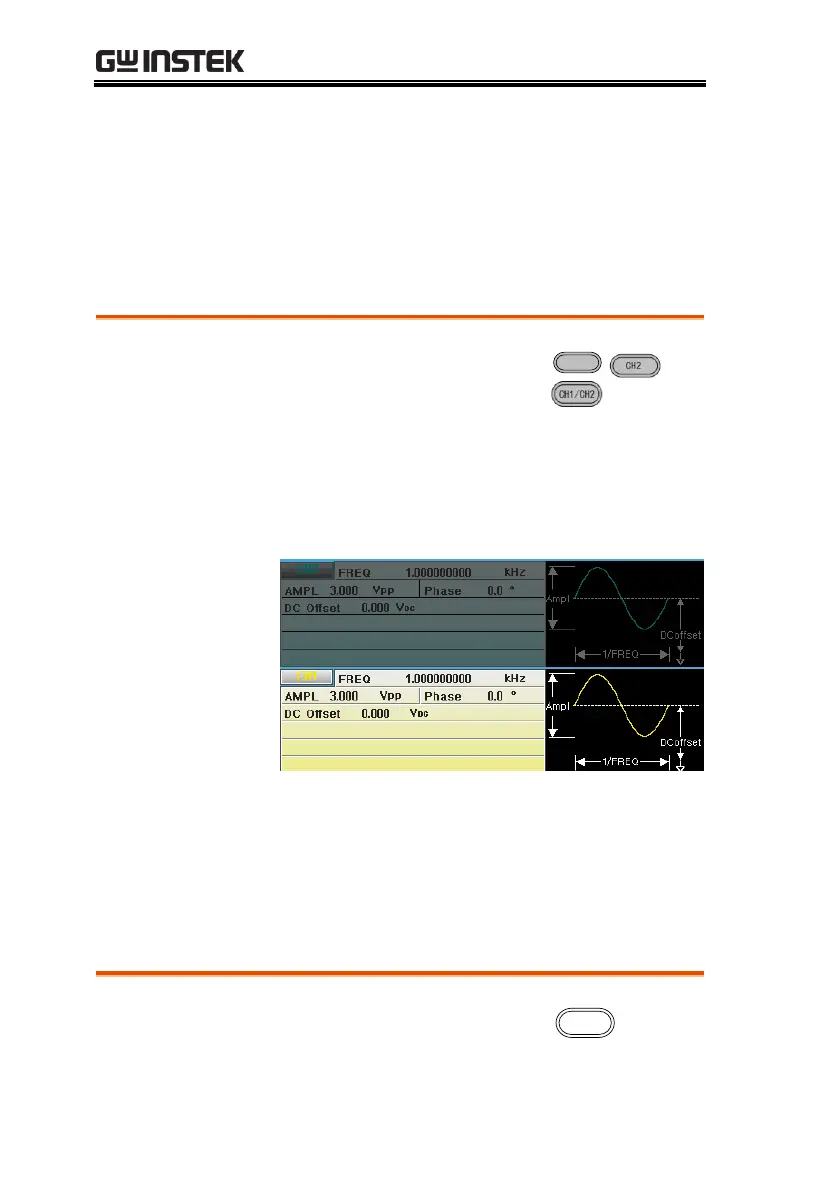

CH1/CH2 Channel
As the MFG-2000 Serise are multi channel models, the desired
output channel must first be selected before assigning the operation
for that channel.
Select Channel
Panel Operation
1. Press the CH1 or CH2
or CH1/CH2 key.
21XX
22XX

2. The selected channel will be visible while the
deselected channel will be dimmed.
In the screen shot below, CH1 is selected.
Setup a Waveform
The MFG-2000 series can output 6 standard waveforms: sine,
square,triangle, pulse, ramp and noise.
Sine Waveform
Panel Operation
1. Press the Waveform key.

