MODULATION
163

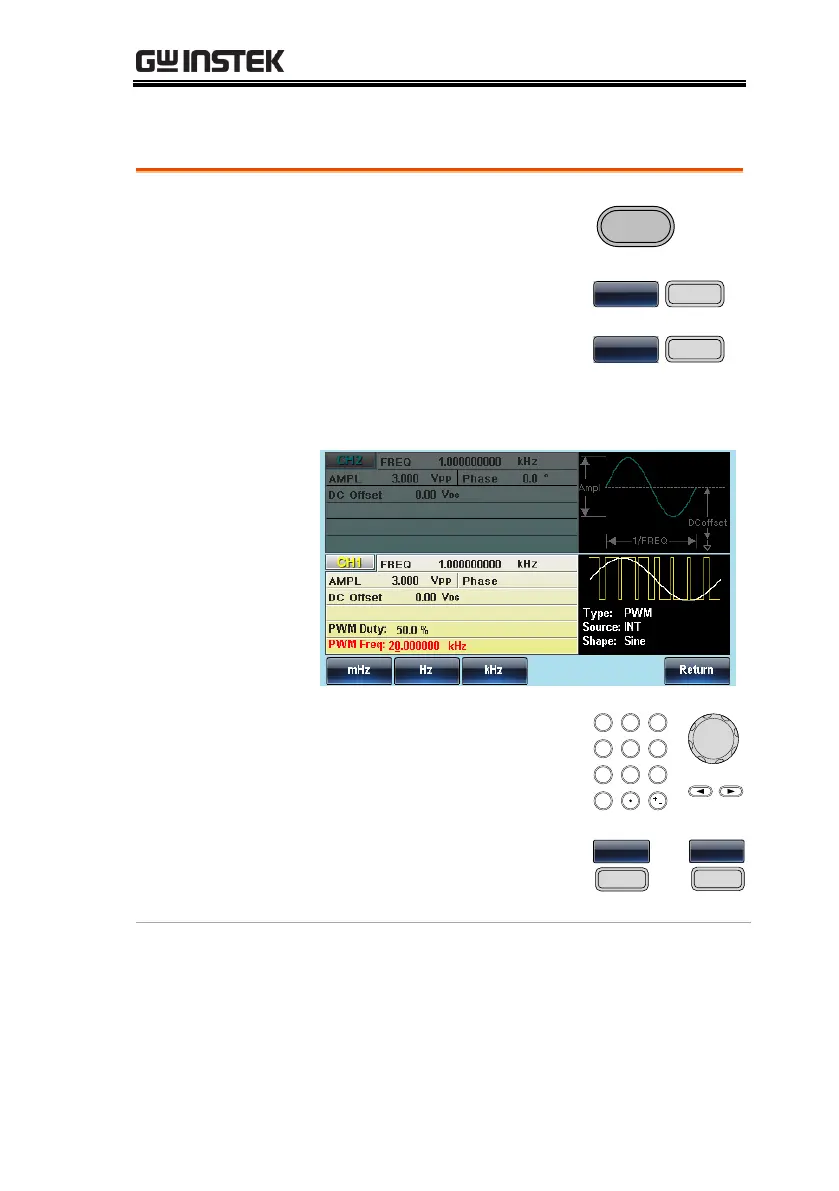

Modulating Waveform Frequency
Panel Operation
1. Press the MOD key.

2. Press F6 (PWM).


3. Press F3 (PWM Freq).
q

4. The PMW Freq parameter will become
highlighted in the parameter window.
5. Use the selector keys and
scroll wheel or number pad
to enter the PWM frequency.

/


 



6. Press F1~F3 to select the
frequency unit range.
z

~
kz

Range
PWMFrequency
2mHz~20kHz
Default
20kHz
