SUM Amplitude
The SUM depth is the offset (in percent relative to the carrier) of the
signal that is added to the carrier.

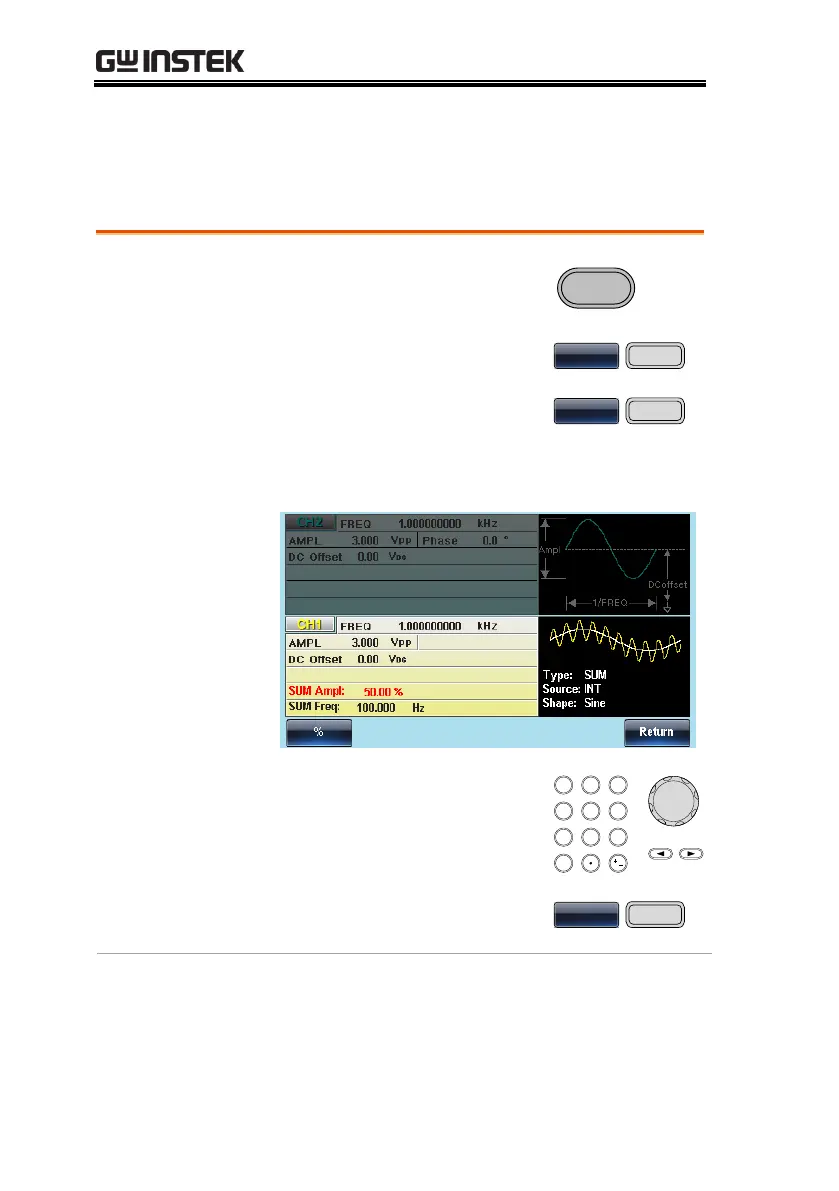

Panel Operation
1. Press the MOD key.

2. Press F5 (SUM).


3. Press F5 (SUM Ampl).


4. SUM Depth will be highlighted in the
parameter window.
5. Use the arrow keys and scroll
wheel or number pad to enter
the SUM depth.

/


 



6. Press F1 to select the
percentage unit.
%

Range
Sum depth
0~100%
Default depth
50%
