GW Instek MFG-2000 Series - Setting the Amplitude

OPERATION
99
3. There are two ways to set its
value :
a,Use the arrow keys and
scroll wheel.
b, number pad to enter the
Duty range.

/


 




/


 



Choose a frequency unit by
pressing F2~F6.
z

~
z
Range
Sine wave
1μHz~320MHz(max)
Square wave
1μHz~25MHz(max)
Pulse wave
1μHz~25MHz(max)
Ramp wave
1μHz~1MHz

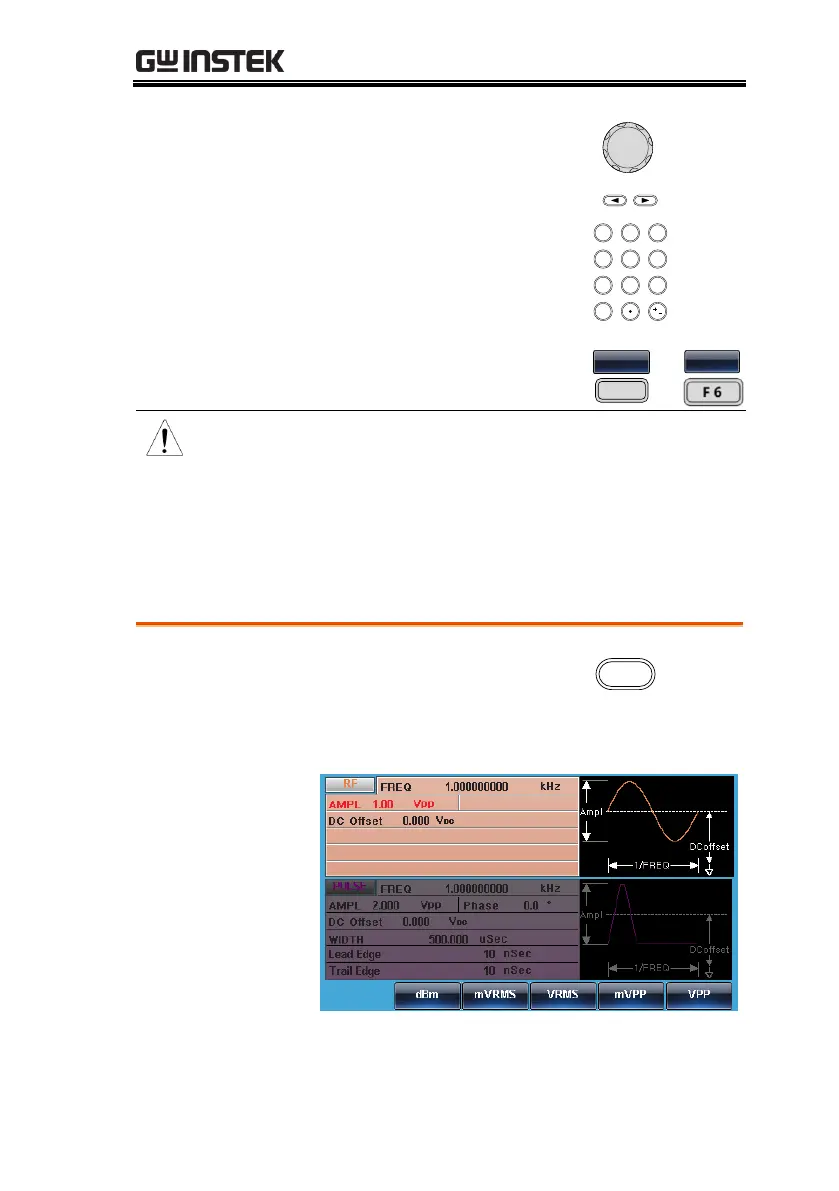

Setting the Amplitude
Panel Operation
1. Press the AMPL key.

2. The AMPL parameter will become highlighted
in the parameter window.
