GW Instek MFG-2000 Series - Setting the Pulse Trailing Edge Time

OPERATION
107
Minimum
Leading Range
≧10nS(limited by the current
frequency and pulse width
settings)
Edge time
Considerations
Leading Edge Time ≤ 0.625 ×
Pulse Width
6. To set parameter
Load/Frequency/Amplitude/DC
Offset/Phase, please see page 109 - 113.

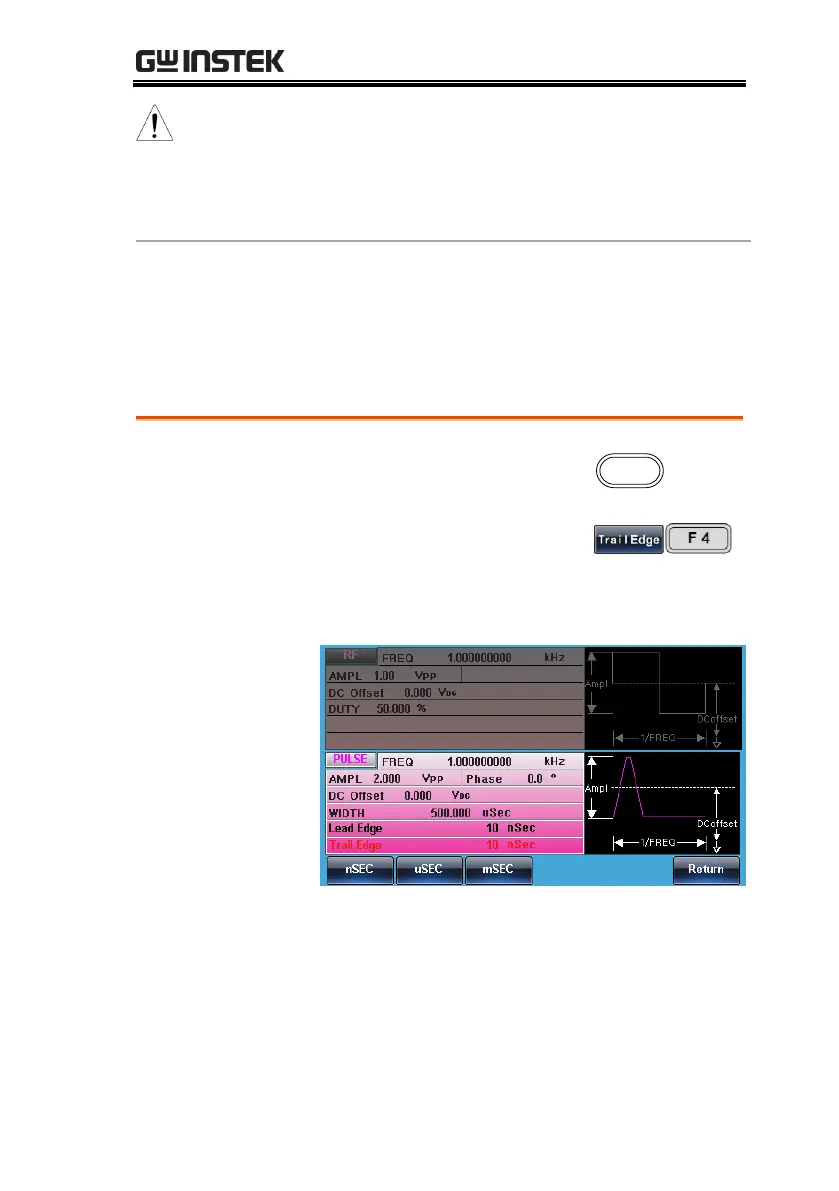

Setting the Pulse Trailing Edge Time
Panel Operation
1. Press the Waveform key.

2. Press F4 (Trail Edge). The
Trail Edge parameter will be
highlighted in the parameter
window.
