MODULATION
185
4. Press F2~F6 to select the
frequency unit.
z

~
z
Range
Frequency– Sine
1uHz~60MHz(max)
Frequency– Square
1uHz~25MHz(max)
Freqency – Ramp
1uHz~1MHz
Default
1kHz
Note
Waveform frequency and burst period are not the
same. The burst period is the time between the
bursts in N-Cycle mode.

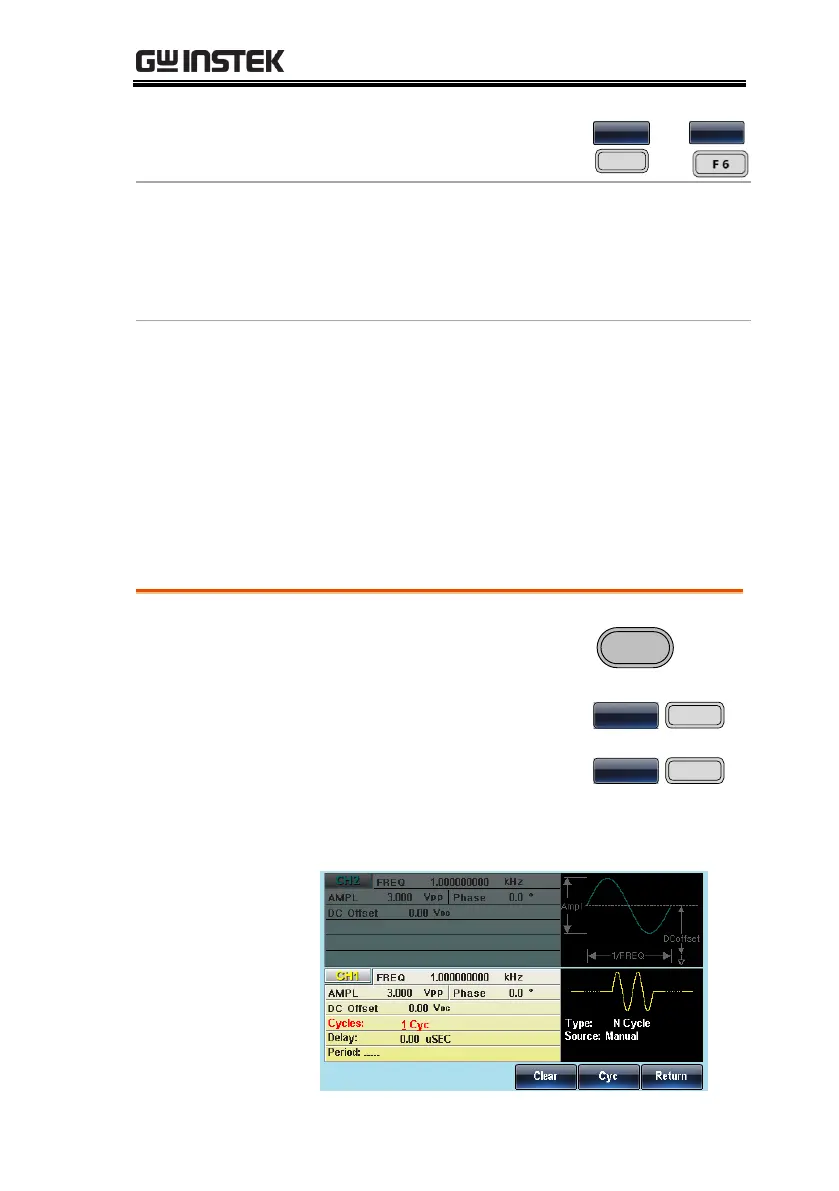

Burst Cycle/Burst Count
The burst cycle (burst count) is used to define the number of cycles
that are output for a burst waveform. Burst cycle is only used with
N-cycle mode (internal, external or manual source). The default
burst cycle is 1.
Panel Operation
1. Press the Burst key.

2. Press F1 (N Cycle).


3. Press F1 (Cycles).


4. The Cycles parameter will become highlighted
in the Waveform Display area.
