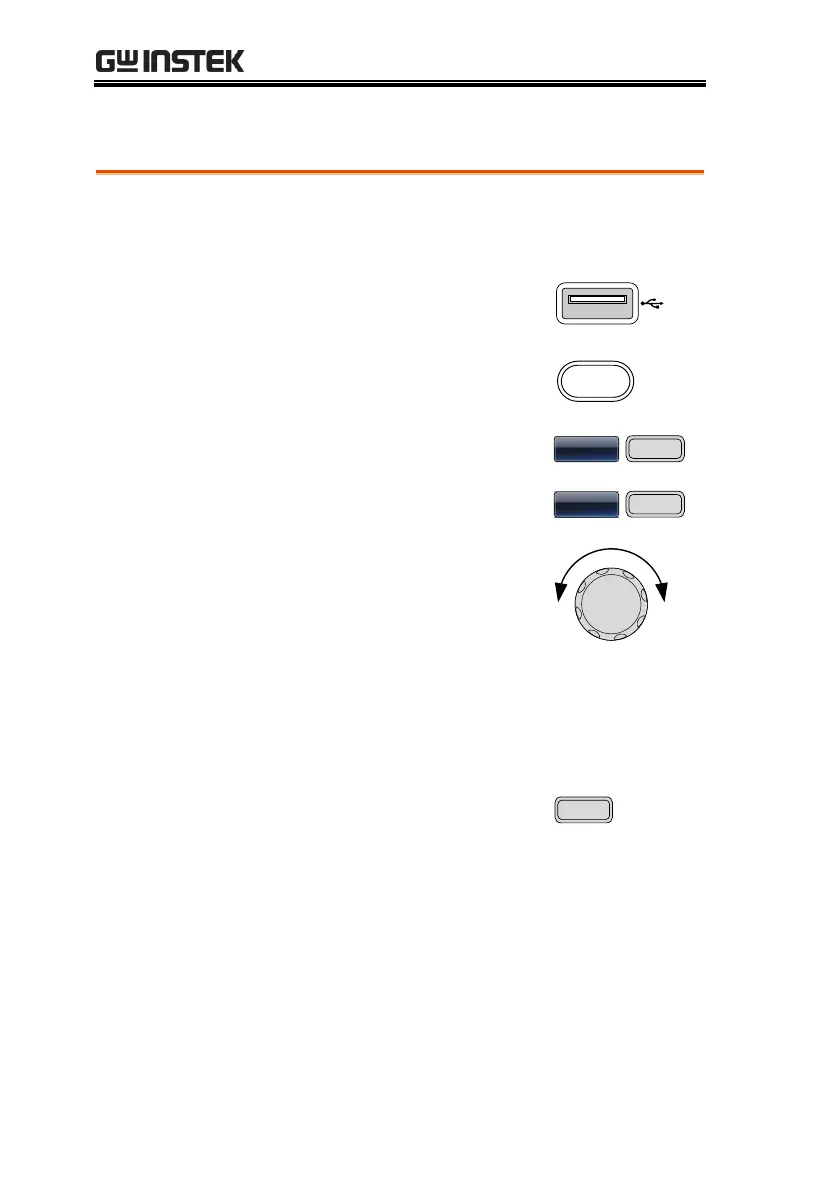

MFG-2000 Series User Manual
206
Screen Capture
Background
Connection
1. Insert a USB key into the USB
port on the rear panel.
Panel Operation
2. Press the UTIL key.

3. Press F4 (System).


4. Press F1 (Hardcopy).
ad

5. Use the scroll wheel to scroll
through the different screen
shots. A screen shot is
captured each time a function
is used.
Function: Waveform, ARB,
MOD (AM, FM, FSK, PM),
Sweep,Burst, UTIL
6. When a screen is selected,
press F1 to save the screen
shot. The utility menu will
reappear after 2 seconds. This
indicates that the screen shot
was saved.

