GW Instek MFG-2000 Series User Manual

SECONDARY SYSTEM FUNCTION SETTINGS
205
Frequency Counter

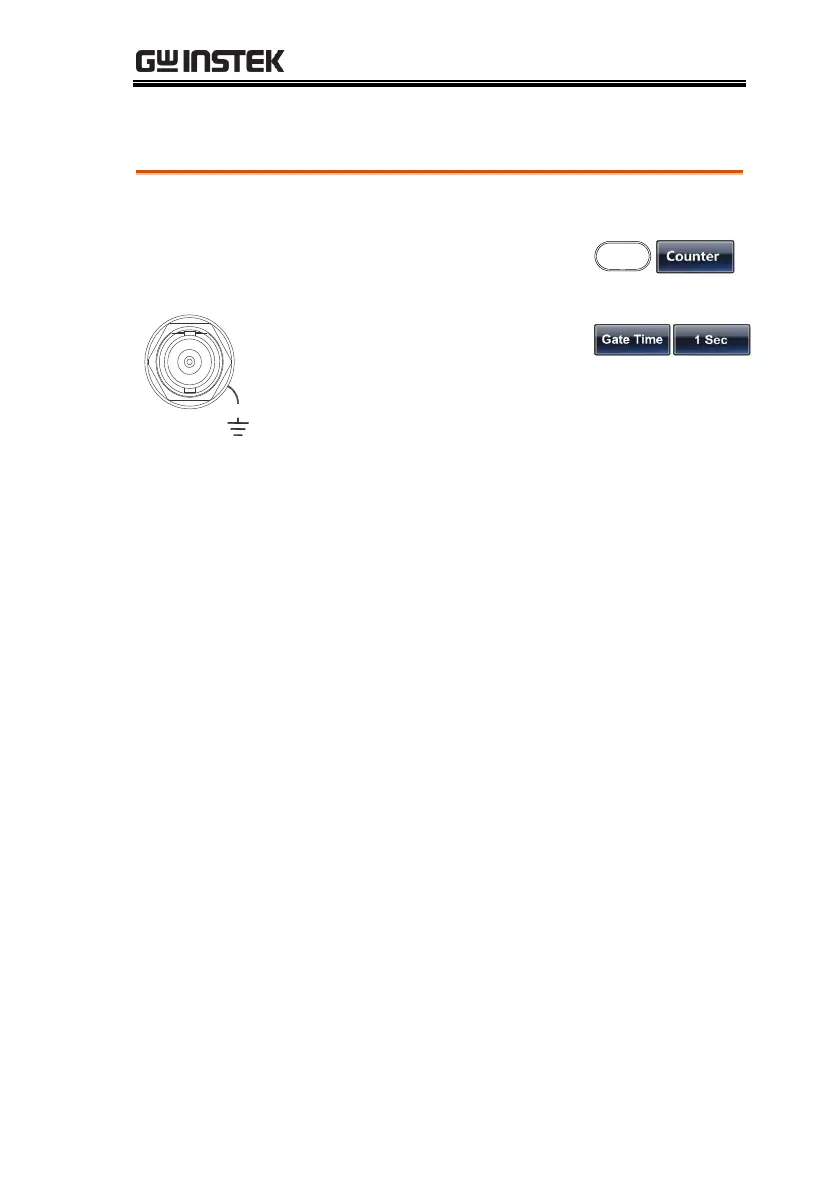

Example: Turn on the frequency counter. Gate time: 1 second.
Output: N/A
Input:

     
     
      
    
   
     
  

     

     
     
     
1. Press UTIL, F6 (Counter).

2. Press F2 (Gate Time), and
press F3 (1 Sec) to choose a
gate time of 1 second.
3. Connect the signal of interest to the Frequency
counter input on the rear panel.
4. Input a 1kHz square wave signal into the
Counter input on the rear panel. Set the gate
time to 1S.
