OPERATION

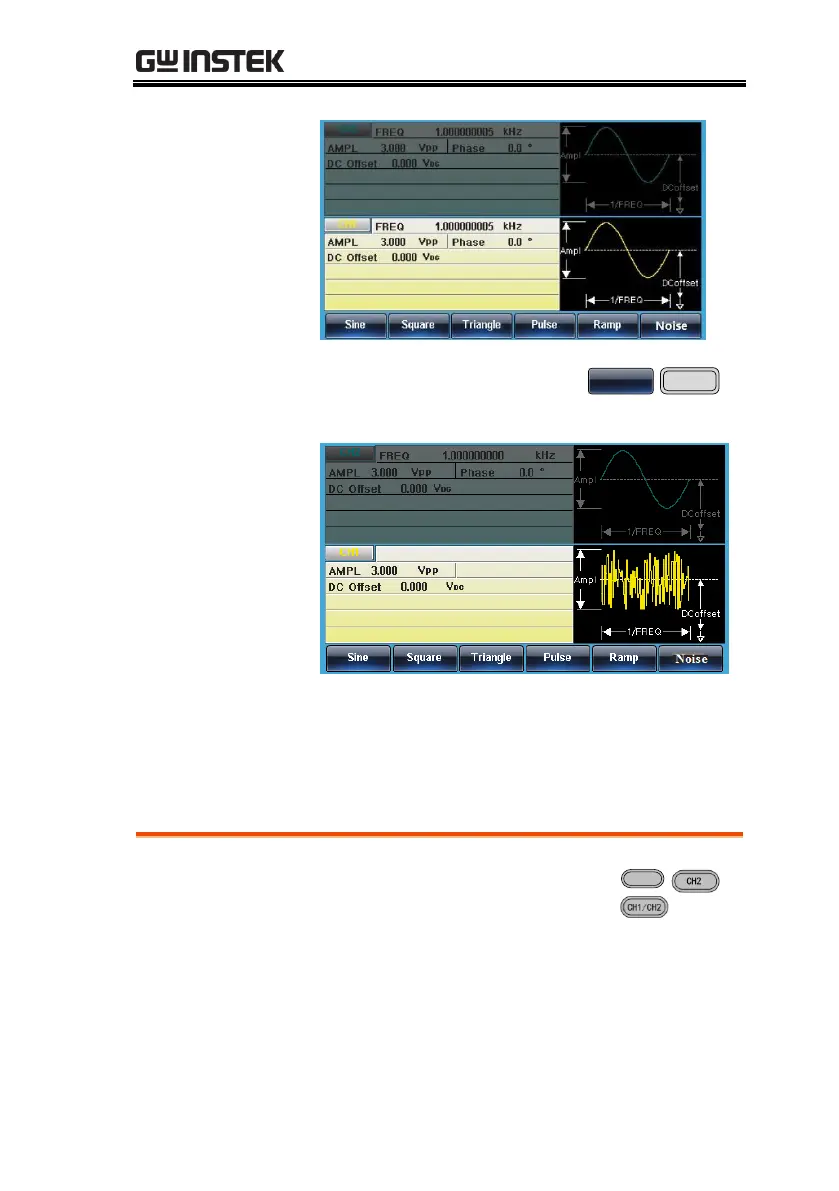

2. Press F6 (Noise) to create a

noise waveform.





Parameter

settings

3. To set parameter Load/Amplitude/DC Offset,

please see page 83 - 87.

Setting the Load

Panel Operation

1. Press the CH1 or CH2 or

CH1/CH2 key.

21XX

22XX


