MFG-2000 Series User Manual
84
Parameter
settings

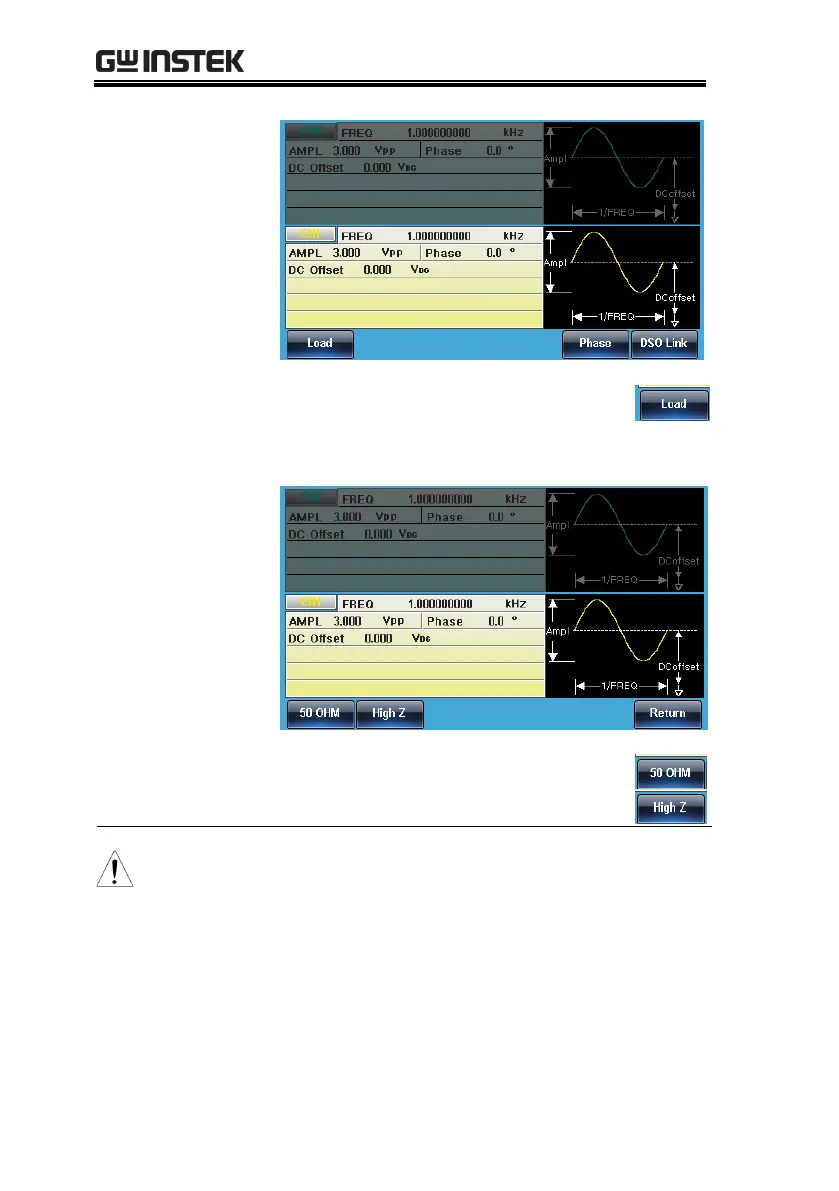

2. Load setting. Select the corresponding
channel and then press F1(Load) to
enter the following interface.
3. Press the F1(50OHM) or F2(High Z) to
set the Load value.
AMPL is twice under High Z loading than that at 50
ohm. Users can check load setting state for each
channel in UTIL.
