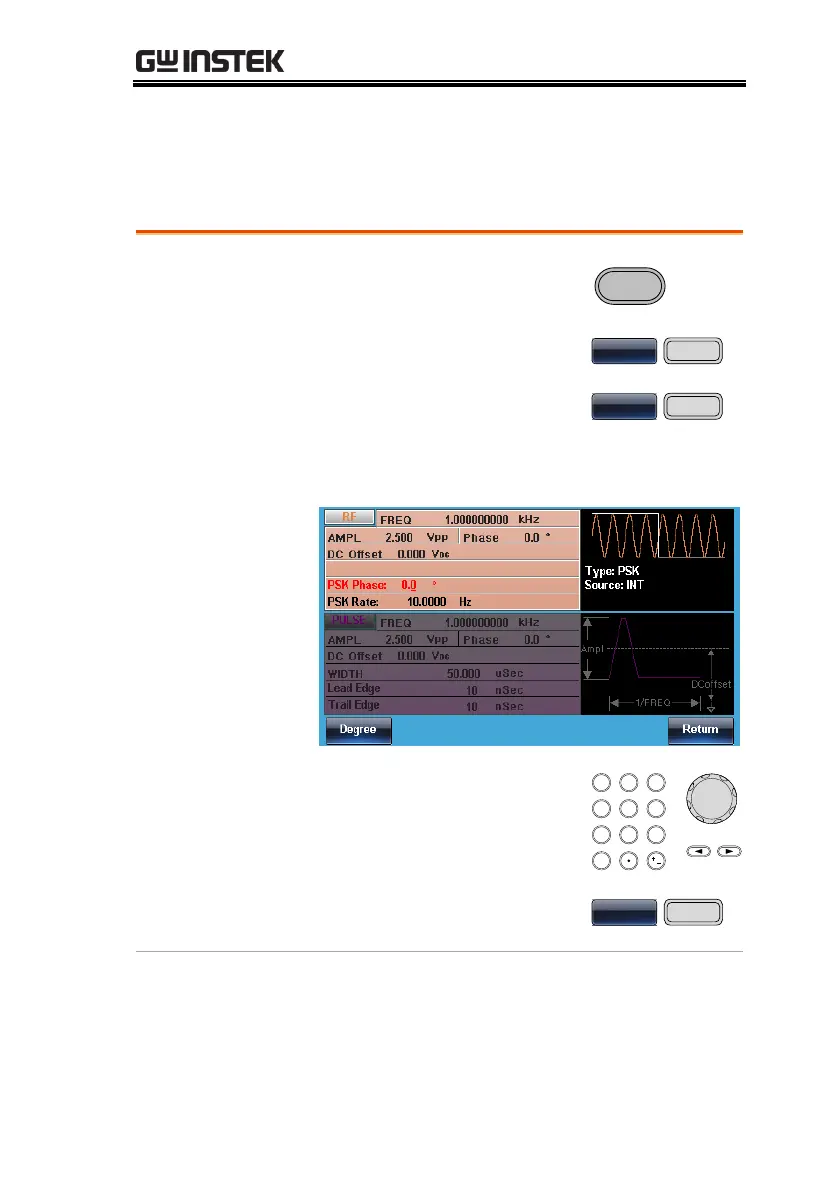

GW Instek MFG-2000 Series - PSK Modulation Phase

MODULATION
157
PSK Modulation Phase
The default PSK phase is 180°. The internal modulation source is a
square wave with a 50% duty cycle.
Panel Operation
1. Press the MOD key.

2. Press F6 (PSK).
K

3. Press F2 (PSK Phase).
Kha

4. The PSK phase parameter will become
highlighted in the parameter window.
5. Use the arrow keys and scroll
wheel or number pad to enter
the PSK phase.

/


 



6. Press F1 to select the phase
units.
Dg

Range
PSK modulation phase
0~360°
Default phase
180°
