MFG-2000 Series User Manual
138

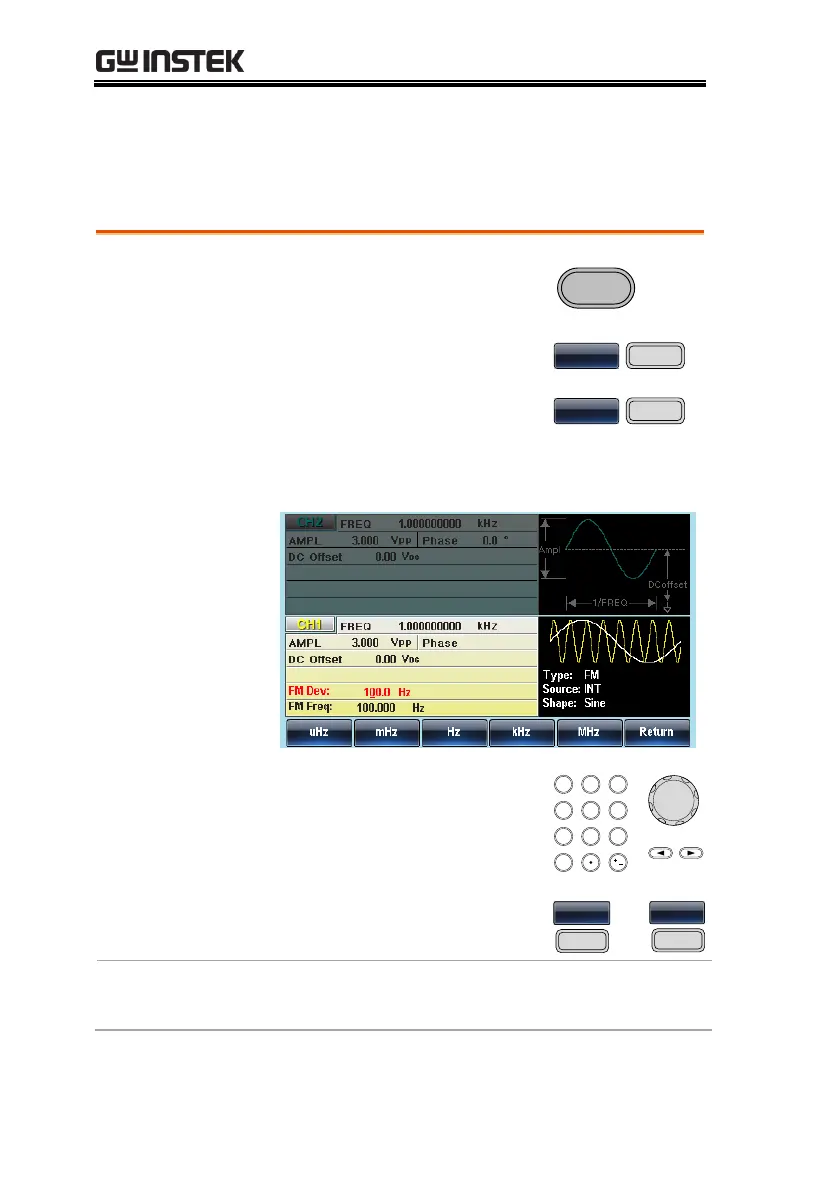

Frequency Deviation
The frequency deviation is the peak frequency deviation from the
carrier wave and the modulated wave.
Panel Operation
1. Press the MOD key.

2. Press F2 (FM).


3. Press F2 (Freq Dev).
qDv

4. The Freq Dev parameter will become
highlighted in the waveform display panel.
5. Use the arrow keys and scroll
wheel or number pad to enter
the frequency deviation.

/


 



6. Press F1~ F5 to choose the
frequency units.
z

~
z

Range
Frequency Deviation
DC~Max Frequency
Default depth
100Hz
