GW Instek MFG-2000 Series - Display

ARBITRARY WAVEFORMS
227
Display
Panel Operation
1. Press the ARB key.

2. Press F1 (Display).
Da

3. To make the display window
cover the whole waveform,
press F5 (Overview).
Horizontal: 0~1000
Vertical: -8191~8191
Ovv


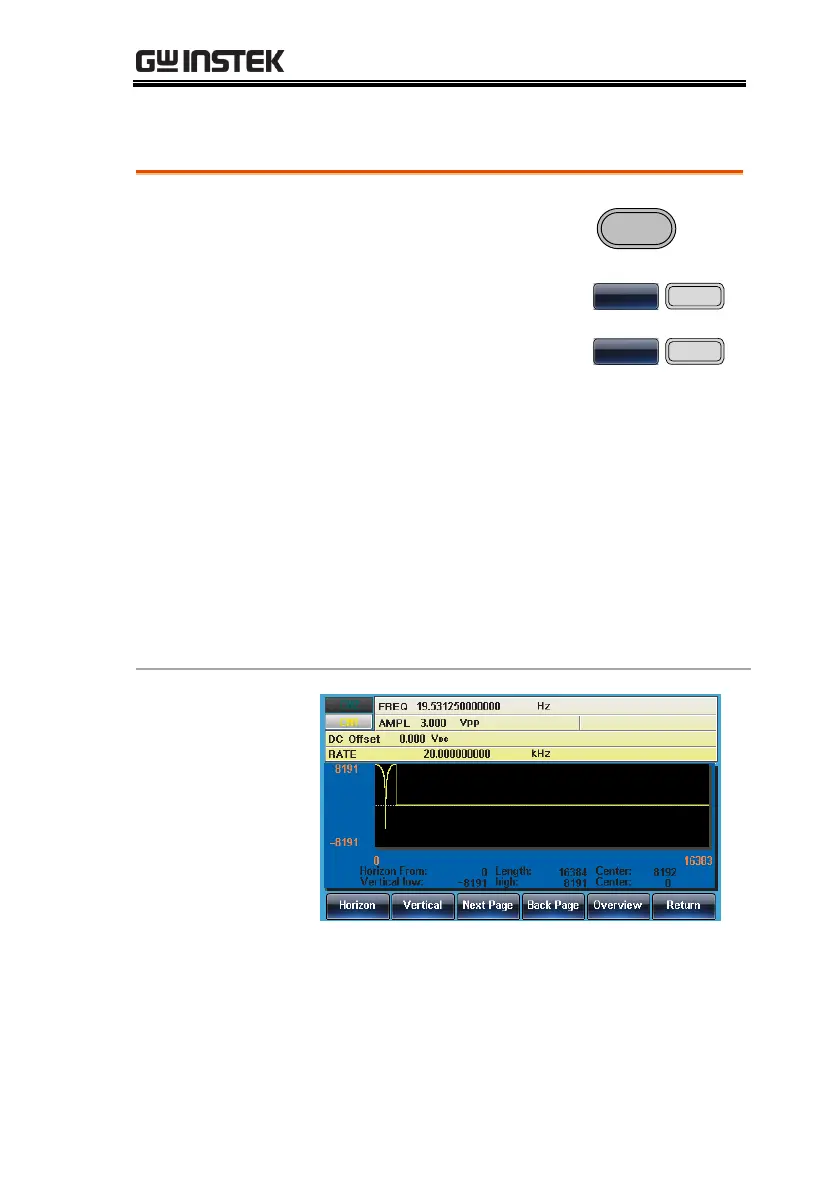

Below shows the display after Overview has been
selected.
Horizon From: 200  0
Length: 119916384
Center:799 8192
Vertical low/high: ±8191
